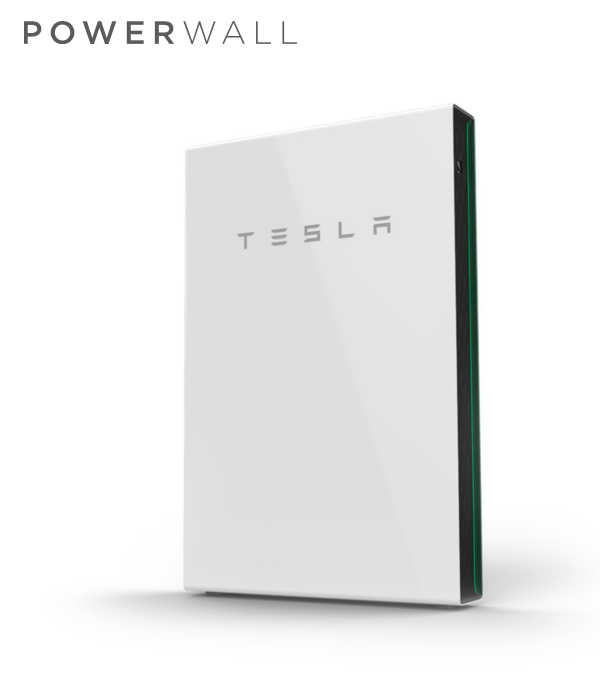

Tesla Powerwall
Tesla Powerwall is a fully-integrated AC battery system for residential or light commercial use. Its rechargeable lithium-ion battery pack provides energy storage for solar self-consumption, time-based control, and backup.
Powerwall’s electrical interface provides a simple connection to any home or building. Its revolutionary compact design achieves market-leading energy density and is easy to install, enabling owners to quickly realize the benefits of reliable, clean power
Benefits of your Tesla Powerwall
Tesla Powerwall allows you to store 14 kWh of energy (13.5 kWh usable) and use that energy to run your home with solar during the night and back up your home in the event of a power outage.
Powerwall is compact, safe and includes a built-in battery inverter, which provides easier integration and over-the-air updates for new features and functions
✔️ Self-Powered Home : Use solar and Powerwall to reduce reliance on the grid and run your home off solar day and night.
✔️ Energy Savings: Reduce your power bills by charging during off-peak times
✔️ Backup Power: Protect your home from a power outage with seamless and reliable backup power
✔️ Home Energy Control: Manage and control your home energy use in real-time with the Tesla mobile app
How does the Tesla Powerwall Work?
1 - Solar begins powering your home in the morning when the sun rises.
2 - Excess solar energy charges your Powerwall.
3 - Powerwall runs your home at night.
Performance Specifications
| AC Voltage (Nominal) | 230 V | |
| Feed-In Type | Single Phase | |
| Grid Frequency | 50 Hz | |
|
Total Energy
|
14 kWh | |
|
Usable Energy
|
13.5 kWh | |
| Real Power, max continuous ( In Backup mode, grid charge power is limited to 3.3 kW) |
5 kW (charge and discharge) | |
| Apparent Power, max continuous | 5 kVA (charge and discharge) | |
| Maximum Supply Fault Current | 10 kA | |
| Maximum Output Fault Current | 32 A | |
| Power Factor Output Range | +/– 1.0 adjustable | |
| Internal Battery DC Voltage | 50 V | |
|
Round Trip Efficiency ( Values provided for 25°C, 3.3 kW charge/discharge power. |
90% | |
| Warranty | 10 years | |
Mechanical Specifications
| Dimensions(1) | 1150 mm x 753 mm x 147 mm | |||
| Weight | 114 kg | |||
| Mounting options | Floor or wall mount | |||
(1) - Dimensions and weight differ slightly if manufactured before March 2019. Contact Tesla for additional information.
Environmental Specifications
| Operating Temperature | –20°C to 50°C | |||
| Recommended Temperature | 0°C to 30°C | |||
| Operating Humidity (RH) | Up to 100%, condensing | |||
| Storage Conditions | –20°C to 30°C Up to 95% RH, non-condensing State of Energy (SoE): 25% initial |
|||
| Maximum Elevation | 3000 m | |||
| Environment | Indoor and outdoor rated | |||
| Ingress Rating | IP67 (Battery & Power Electronics) IP56 (Wiring Compartment) |
|||
| Wet Location Rating | Yes | |||
| Noise Level @ 1m | < 40 dBA at 30°C | |||
Typical System Layouts
Whole Home Backup
Partial Home Backup
F.A.Q
Frequently Asked Questions
-
Tesla mobile app - log in / set up / learn more
Once your Powerwall has been turned on, download the Tesla app and start monitoring your Powerwall and home energy usage.
Step 1: Log In
Log in using the same email address you used to order Powerwall with solar. If you are already a Tesla vehicle owner, log in using the same email address you use to sign into your Tesla Account.Step 2: Set Up Notifications
Receive notifications when Powerwall starts backing up your home during instances such as a power outage.Step 3: You are now logged into the Tesla app
Learn more about the features of the Tesla mobile app. You can also learn more about using and customizing your Powerwall below: -
Why does the Tesla mobile app show power flows or values that appear inaccurate?
Power flow on the monitoring Tesla mobile app shows the instantaneous flow of power of your home energy system. On a typical day a combination of solar, grid, and Powerwall may be powering your home. Solar energy may flow to the grid when your home does not need it and Powerwall is full. When charging your Powerwall to its backup reserve level or in Backup-only mode, solar power will flow directly from solar to Powerwall while grid energy is drawn for the home.
-
Where can I find my Powerwall Gateway information?
The Tesla Gateway part number and serial number for your Powerwall Gateway will appear on a sticker on the inside of the Gateway door. Learn how to locate your Gateway information here.
-
Why isn't my Powerwall charging?
When installed with PV, Powerwall is designed to charge from solar energy. If your solar system is not yet operational, Powerwall will not be able to charge. If your solar system is operational and you are in Self-powered Mode, Powerwall will charge with any excess solar that your home doesn't immediately use. Smaller solar systems sometimes do not produce more than your home is currently using. You can increase the backup reserve or switch to Backup-only, which will prioritize charging Powerwall with any solar production.
-
How much does it cost to go off-grid?
The cost to go off-grid will depend on your expected/anticipated energy demand. With knowledge of your energy demand we can then help you size your battery storage, solar PV, generator, microgrid inverter, etc.
It is worth noting that connecting a new block to the power grid can cost between $15,000 and $50,000 depending on the situation. And a typical energy bill for the average household is around $3000-$4000 per year (or higher in colder areas). Given the cost of grid connection and supply, a well maintained and high quality off-grid system is likely to be cheaper in the long run (20 years +), depending on your particular situation (if grid connection is >$30,000 you can pretty much assume off-grid will be cheaper).
