Pure Electric are Australia's nation wide experts
in providing the highest quality all efficient electric solutions
Striving to develop ‘Environmentally Advanced’ Products.
Over 15 Years of Experience
Co-Founders Matthew Wright and Paul Szuster have been campaigning to develop the Renewables and Efficiency industry from its early beginnings
Either inhouse or through our strategic partners including TrueDemand we offer our deep experience on energy for clients of any size.
Our solutions are designed to save you money while always giving you a competitive and streamlined service. Talk to us about saving on your bills.
Hours Of Support
Frequently Asked Questions
Sanden Eco Hot Water Tank Size Options? Which tank size should I choose?
The Sanden Eco Plus hot heat pump hot water system is available in the following five sizes with our sizing guide below:
Tank size/shape Tank Code System No. of People No. of Bathrooms Dwelling type Off-peak & Continuous tariffs? Tank Diameter (mm) Tank Height (mm) 160L SS SAN-160SAQA GAUS-160FQTS 1 1 Bedsits Continuous only 621 970 250L SS SAN-250SAQA GAUS-250FQTS 1-3 1-2 Residential Both 621 1428 300L Tall SS SAN-300SAQA GAUS-300FQTS 2-6 1-3 Residential Both 580 1891 315L SS SAN-315SAQA GAUS-315FQTS 2-6 1-3 Residential Both 621 1748 315L VE SAN-315VE GAUS-315FQTV 2-6 1-3 Residential Both 638 1626
The same Sanden Heat Pump condenser unit is used in combination with different tanks sizes. So which tank size you would like?
When considering tank sizes - we need to consider a few factors - number of people, number of bathrooms, the heat recovery rate.
If you're using an existing hot water system for comparison - here are some comments/thoughts:
If you have an existing gas storage hot water system (e.g. 130L / 170L) - these are much smaller in capacity but they will reheat several times a day. Therefore the Sanden tank size will be larger than an existing gas storage replacement with the Sanden re-heat typically only required once per day - a good opportunity to maximise rooftop solar PV production or to utilise an off peak tariff.
If you have an existing electric storage hot water system (e.g. 400L 3.6kW unit) - these electric storage 3.6kW units recover heat at a slower rate (60L/hr) compared to a Sanden heat pump (approx. 80L/hr). Therefore a 400L electric storage hot water system would equate to a 300L/315L Sanden system in this example.
Based on our years providing the Sanden Eco heat pump hot water system - here are our tank recommendations for different scenarios (SS - Stainless Steel // VE - Vitreous Enamel):
160L SS: Only recommended for 1 person bedsits. This tank size is rarely chosen and due to its small tank size must be run in Continuous only mode (no blockout timer can be set up).
250L SS: Typically 1-3 person household with 1 bathroom. Height just under 1.5m with tank diameter 621mm.
300L SS: The Tall Slim - the most popular and best recommended tank choice. Recommended for 2-6 people. Tank diameter 580mm and tank height just under 1.9m. If no height restrictions apply, this is the recommended tank for majority of situations and considered best value for money across the tank sizes.
315L SS: The largest tank size with an additional 15L delivered hot water (5% more) compared to the 300L Tall Slim tank. Tank diameter 621mm with tank height 1.74m - this is recommended if the 300L tall slim tank is too tall for your application.
315L VE: Tank diameter 638mm with tank height 1.63m with 315L delivered hot water. This VE tank is specified for poor water quality areas - you can identify if you are in a poor water quality area via the Sanden website -> https://www.sanden-hot-water.com.au/check-water-quality/
Can I swap out my old showerhead for the Methven Kiri Satinjet Low Flow Showerhead?
Can I swap out my old showerhead for the Methven Kiri Satinjet Low Flow Showerhead?

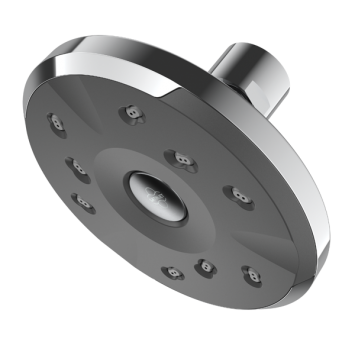

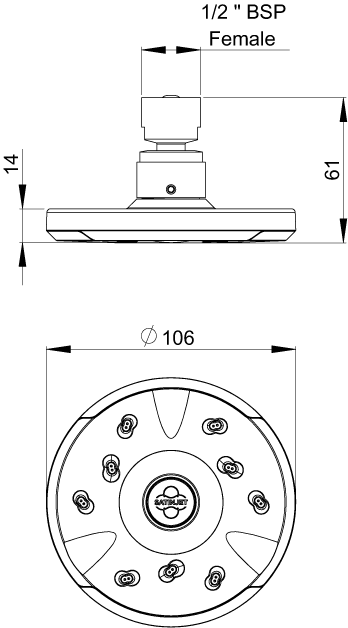

In most instances yes absolutely. The Methven 5.0L/min 5 Star Kiri Satinjet Low Flow showerhead comes with a half-inch 1/2" BSP connection which is very common amongst showerheads making swap-outs very easy.
A test to confirm if you can swap out a standard rose or not from an existing shower arm is if you can twist it off yourself.
If you can't twist the head/'rose' that probably indicates the existing shower rose is integrated into the arm.

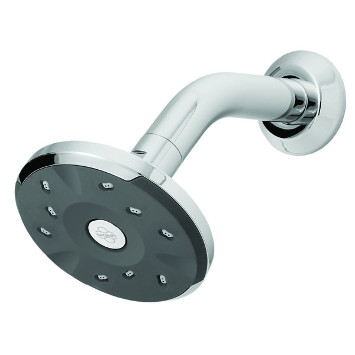

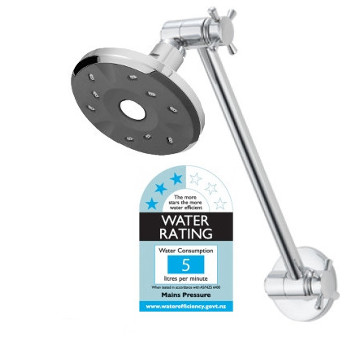

In this instance you need the Rose plus arm (either modern arm, capstan or dual pivot arm).
See below an example of an old very inefficient 15-25 L/min integrated showerhead that would need a new Rose plus arm (unscrew the entire arm off the wall). The Methven 5.0L/min 5 Star Kiri Satinjet Low Flow uses between 3-5x less water than those shower heads in the picture below, a huge water and energy saving opportunity.
You can choose any of our Methven 5.0L/min 5 star Kiri Satinjet Low Flow showerhead options from our website.
Best Electricity Rates?
Best Electricity Rates?
You have recently installed solar PV or the Tesla Powerwall battery storage or just generally looking to get the best electricity deal for your place?
Here are a couple of recommended tools so you can choose which electricity retailer suits you. We recommend doing this check once every 6 months.
If you're in Victoria - the Victorian Government Electricity Retailer Tariff Plan Comparison Tool - https://compare.energy.vic.
gov.au/. Enter your NMI and details, so long as you have a smart meter installed, the tool will look up your most recent 12 months of energy data and recommend the lowest priced electricity plan which accounts for your imported and exported energy as well as the import and export tariffs.
If you're in SA, ACT, NSW, QLD, Tas - go to the Energy Made Easy website which is an Australian Government website maintained by the Australian Energy Regulator (AER) - https://www.energymadeeasy.gov.au/
If you're in WA - this is a Regulated Retail energy market with the supplier being "Synergy" the State Government owned entity - you can view the latest Regulated Tariff price here - https://www.wa.gov.au/organisation/energy-policy-wa/household-electricity-pricing
Selectronic SP PRO and SP LINK Firmware Updating
You have a Selectronic SP PRO Series 2i Inverter and would like to ensure you keep the Firmware up to date?
- Ensure you have the Latest SP LINK Software downloaded. This is critical to ensuring the latest Firmware gets loaded onto the SP PRO.
- Go to the Selectronic website here to download the latest SP LINK version
- Open SP LINK on your Windows PC and confirm you have the latest SP LINK installed - you can go to "Help" -> "Check for Updates")
- In SP LINK go to "File" then go to "Firmware Update..."
- If an SP PRO Firmware Update has been detected, click the button, "Update Firmware and Restart SP PRO on completion"
- During the SP PRO restart, "the SP PRO may be inaccessible for a few minutes while the firmware is installing. During this time, the SP PRO alarm may sound."
- Once uploaded and restarted - your SP PRO should now have the latest Firmware and will say, "The firmware is already up to date."
NB: The Selectronic website for a full history of the Selectronic SP LINK and SP PRO software and firmware updates
How to reconnect Wi-Fi for my SolarEdge Inverter?
Your SolarEdge inverter may have disconnected from the internet - for example a change in the modem/router, change in ISP provider, etc.
To update the Wi-Fi settings on your SolarEdge inverter - follow these steps:
Myenergi Hub How do I update the firmware?
You can view your Myenergi Zappi EV charger basic controls and data on the Myenergi Hub.
If you would like to update your Myenergi Hub to the latest firmware, some details for how to update this:
The Myenergi Hub has two buttons. The steps to update the firmware:
- Unplug Power to the hub
- Press and hold the 'Download' button (right hand side)
- Keep pressing the 'Download' button while you plug the power back into the hub
- Check the status lights on the Hub – once the Power LED turns yellow, release the button
- The Power LED light should be Green and the Server LED light should be white while the firmware is downloading
- Once the download is complete the Server LED light will turn green (or blue) again
Check our RESOURCES
- Daikin US7
- Sanden Eco Hot Water Heat Pump
- Methven Kiri Satinjet Low Flow Showerhead
- Rooftop Solar PV
- Off Grid Energy
- Daikin Nexura
- Tesla Powerwall Battery Storage
- Daikin Alira
- Daikin Perfera
- Daikin Alira X Heating and Cooling
- Myenergi Zappi EV Charger
Myenergi Hub LED Reference Guide
Fronius Primo GEN24 - GEN24 Plus
Solar Victoria Solar for Business Fact Sheet
Geo-tagging Helpful Guide
Methven Kiri Low Flow - Product Care Tips
Clenergy Black Mounting Frame Datasheet Guides Warranty Document Pack
Clenergy SolarRoof Tin and Tile Flush Engineering Certification Letter and Spacing Tables
Clenergy Wind Region PV-ezRack Figure
Daikin Alira X - Reverse Cycle
BR0007_17 SP PRO Series 2i Data Sheet August 2021
Tesla Powerwall Brochure AU
Tesla Powerwall Backup Gateway 2 Datasheet
Tesla Powerwall AC Datasheet AU

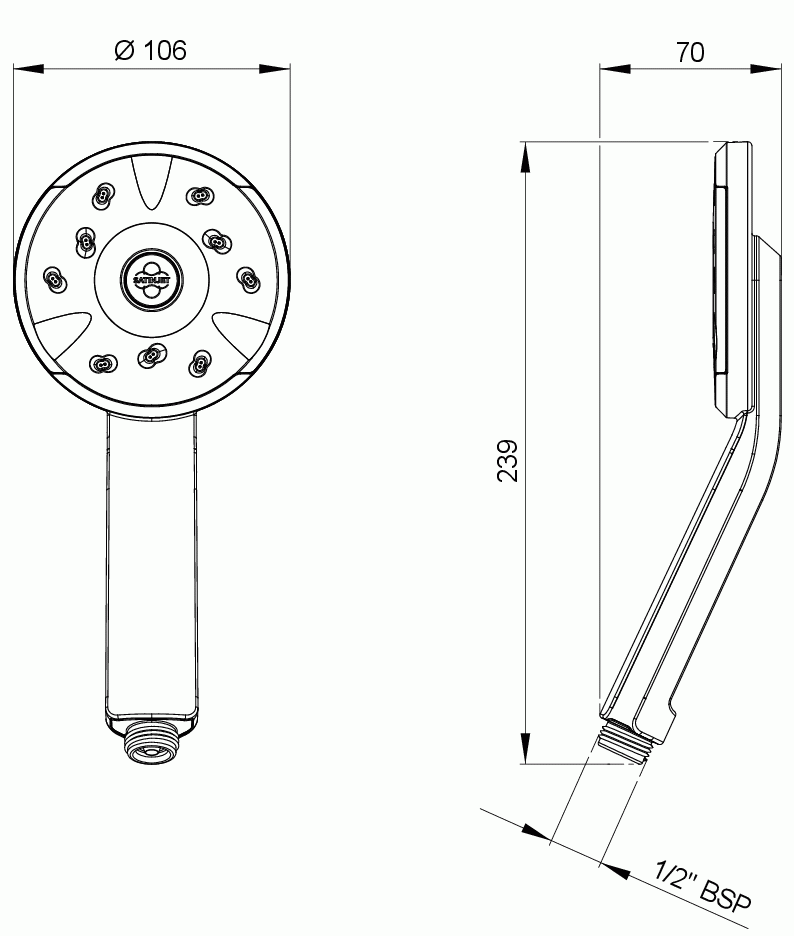

Methven Kiri Satinjet Ultra Low Flow MK2 handheld KRLFHSCP technical drawing
