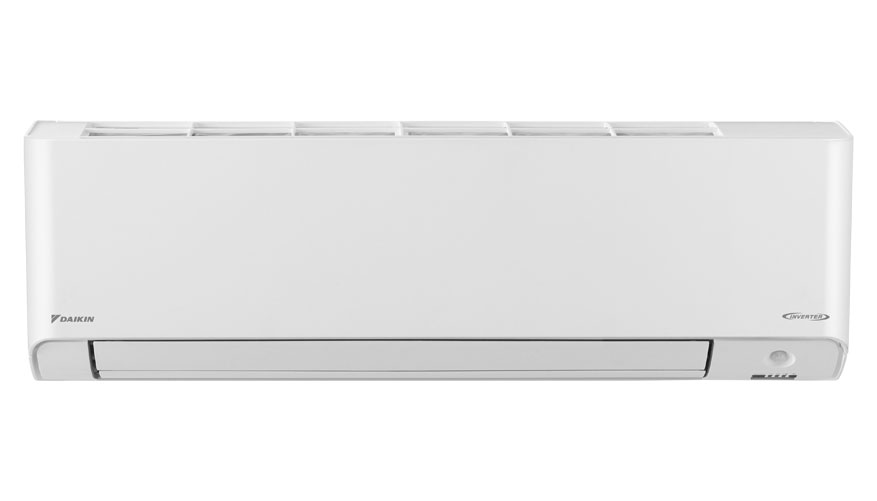

Daikin Alira X

Daikin Alira X is a step ahead of the rest, delivering a perfect fusion of whisper quiet comfort, industry leading energy efficiency and indoor air quality technology.

Available in:

+ Reverse Cycle (Heating or Cooling)

+ Cooling Only

Capacities:

+ Reverse Cycle: 2.2kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW

+ Cooling Only: 2.2kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW

Refrigerant: R32

daikin-Alira-X-5-Warranty

Key Features - Daikin Alira X

It's the unique features of Daikin products that makes us the world leader.

Perfect fusion

New R32 Alira X is a perfect blend of progressive design aesthetic, superior energy performance & indoor air quality technology.

Advanced purification

Each model is fitted with three layers of filtration, prefilter for large particulates, enzyme blue deodorising filter for odours and Daikin’s Streamer Technology for powerful oxidative decomposition of pollutants.

Built-in WI-FI

The Wireless LAN module for connection to Daikin’s Mobile Controller smartphone interface is now conveniently included inside the casing of the indoor unit.

Mould-proof operation

Activates after cooling or dry operation to prevent the build up of mould and odour.*

Intelligent comfort

The 2-Area Intelligent Eye** is so clever it can now either direct airflow towards you or away from you for draught free comfort. If the room is unoccupied the unit will automatically enable energy saving operations.

Coanda airflow

Discharge louvres are specially designed to stream air upwards along the ceiling for longer throws and delivering rapid cooling and even temperature distribution in the occupied space.

Streamer Technology - The Three C's

1. Clash: Decomposes harmful substances trapped by the High Efficiency Particulate Filter.

2. Cycle:  Maintains the deodorising filter’s deodorising capacity by assisting odour decomposition.

3. Clean: Removes bacteria from all filters allowing them to be maintenance free and increasing filter longevity.

Streamer Technology - The Three C's - Daikin Alira X

The secret to high performance air purification is Daikin’s Streamer Technology. This innovative technology features a high-power plasma discharge that generates high-speed electrons to decompose harmful substances.

This powerful oxidative decomposition process continuously removes odours, bacteria and indoor air pollutants, such as formaldehyde, for superior air purification.Warranty

Technical Specifications - Daikin Alira X

Indoor Unit FTXM20WVMA FTXM25WVMA FTXM35WVMA FTXM46WVMA FTXM50WVMA FTXM60WVMA FTXM71WVMA
Outdoor Unit RXM20WVMA RXM25WVMA RXM35WVMA RXM46WVMA RXM50WVMA RXM60WVMA RXM71WVMA
Rated Capacity Cool (kW) 2.2 2.5 3.5 4.6 5 6 7.1
Heat (kW) 2.7 3.2 3.7 4.7 6 7.2 8
Capacity Range Cool (kW) 1.1-2.8 1.1-3.7 1.1-4.2 0.9-5.5 1.1-6.7 1.1-7.5 2.0-8.9
Heat (kW) 1.1-4.4 1.1-5.4 1.1-5.5 1.0-6.7 1.0-8.0 1.0-9.8 2.0-10.8
Indoor Airflow Rate (H) Cool (l/s) 228 242 242 253 342 395 410
Heat (l/s) 223 223 242 250 342 395 410
Indoor Fan Speeds 5 steps, quiet and automatic
Star Rating (Hot/Avg/Cold)
ZERL (Residential)
Cool 6/5.5/5.5 6/5.5/6 5/5/5 4.5/4/4.5 5.5/5/5 4.5/4.5/5 4/3/3.5
Heat 3.5/3.5/3 4/3.5/3 3.5/3.5/3 4/3.5/3 4/3.5/3 4/3/2.5 3.5/3/2.5
Front Panel Colour White
Power Supply 1 phase, 220-240V, 50Hz
Power Input (Rated) Cool (kW) 0.42 0.47 0.8 1.17 1.13 1.48 2
Heat (kW) 0.5 0.64 0.76 1.04 1.23 1.61 1.96
E.E.R/C.O.P Cool/Heat 5.30/5.40 5.38/5.00 4.38/4.89 3.95/4.52 4.42/4.88 4.05/4.47 3.55/4.08
TCSPF (Residential) Hot/Avg/Cold 7.87/7.15/7.39 7.95/7.29/7.55 6.98/6.61/6.96 6.09/5.71/6.06 7.00/6.56/6.99 6.49/6.11/6.55 5.50/4.87/5.07
HSPF (Residential) Hot/Avg/Cold 5.34/5.13/4.76 5.50/5.12/4.71 5.44/5.02/4.50 5.61/5.03/4.52 5.84/5.25/4.60 5.50/4.90/4.26 5.10/4.54/4.00
A.E.E.R/A.C.O.P Cool/Heat 5.25/5.36 5.33/4.97 4.36/4.86 3.94/4.50 4.41/4.86 4.04/4.46 3.54/4.07
Dimensions (HxWxD) Indoor (mm) 299x920x275 299x1100x275
Outdoor (mm) 550x675x284 695x930x350
Weight Indoor (kg) 13 13 13 13 15 15 15
Outdoor (kg) 28 30 30 51 54 54 60
Compressor Type Hermetically Sealed Swing Type
Refrigerant Type R32
Max Pipe Length (m) 20 20 20 30 30 30 30
Max Level Difference (m) 15 15 15 20 20 20 20
Pipe Sizes Liquid (mm) 6.4 6.4 6.4 6.4 6.4 6.4 6.4
Outdoor Operating Range Gas (mm) 9.5 9.5 9.5 12.7 12.7 12.7 15.9
Cool (°CDB) -10 to 46
Indoor Sound Level (H/SL) Heat (°CWB) -15 to 18
Cool (dBA) 39/19 41/19 42/19 43/26 45/28 48/29 49/30
  Heat (dBA) 39/20 40/20 42/20 43/26 45/28 48/29 49/30
Outdoor Sound Level (H/SL) Cool (dBA) 46/43 47/43 49/44 47/44 47/44 49/45 53/49
Heat (dBA) 47/44 48/44 49/45 48/45 48/45 52/45 54/49
Outdoor EPA Sound Power
 Level (H)
Cool (dBA) 58 59 61 59 59 61 65
Heat (dBA) 59 60 61 60 60 64 66



Documents

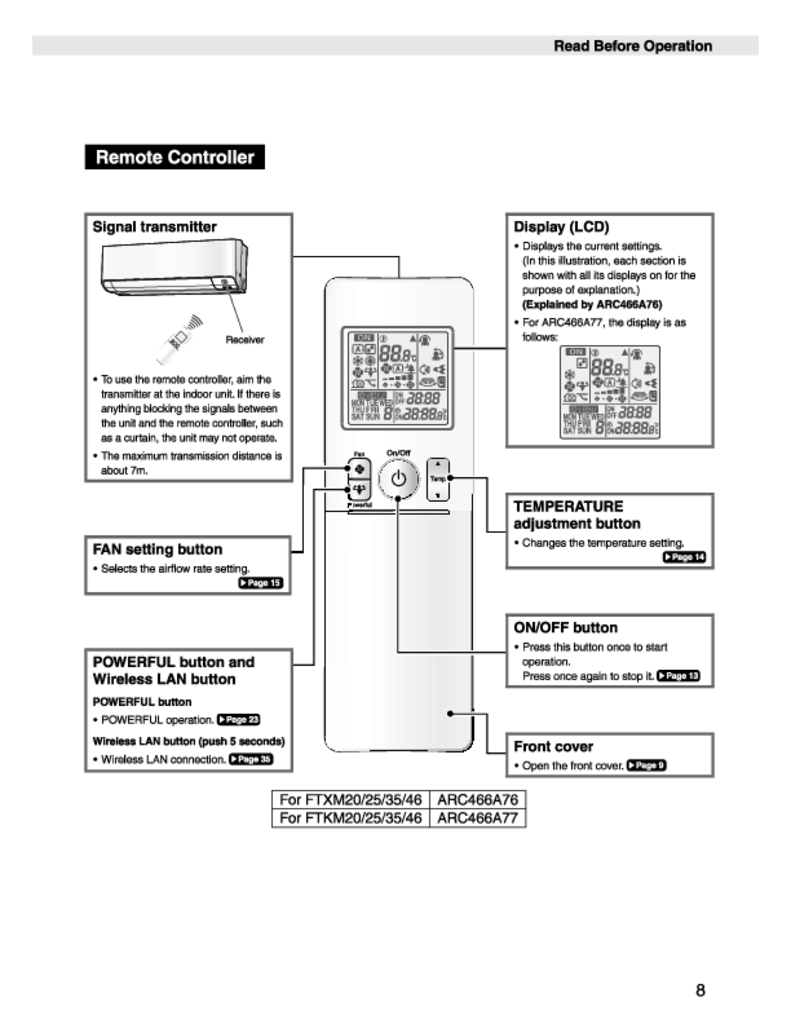

Daikin Alira X Remote Controll…

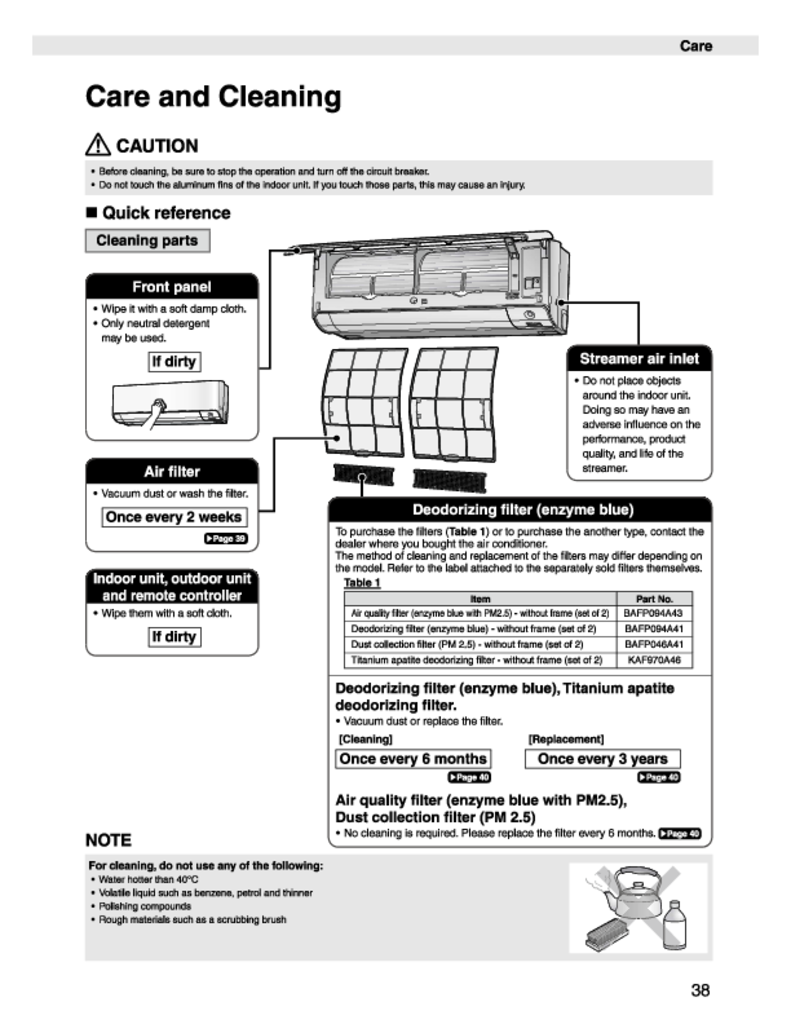

Daikin Alira X Care and Cleani…
Daikin Alira X Heat Pump Speci…

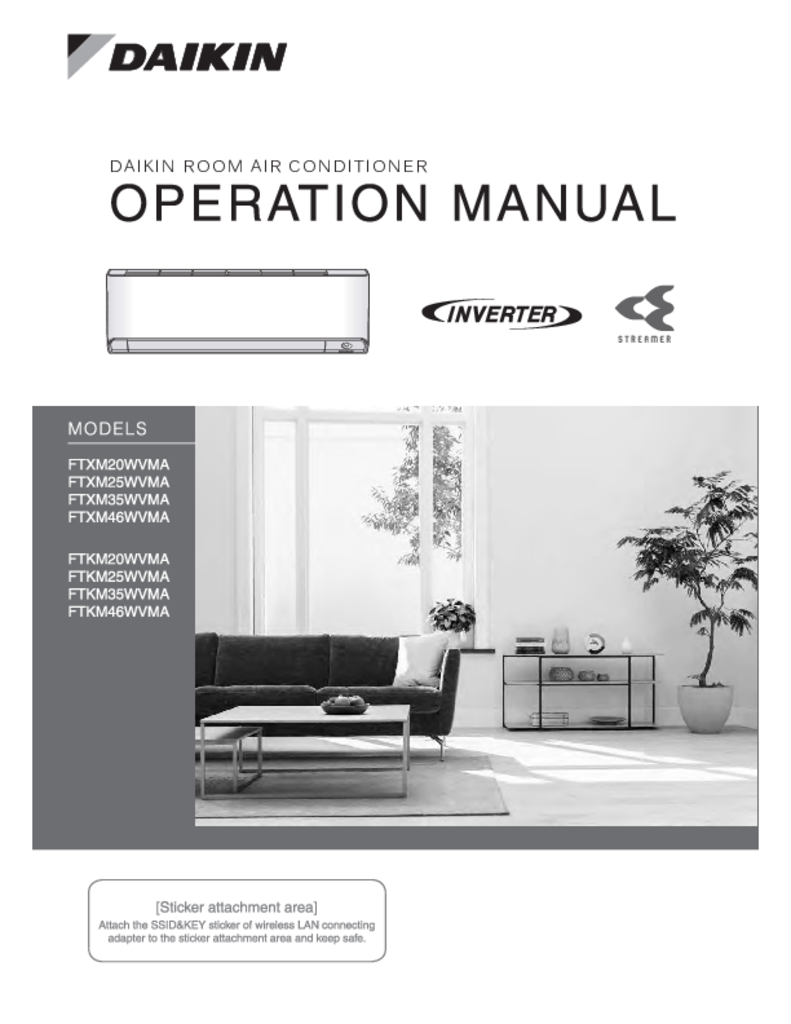

Daikin Alira X Operations Manu…

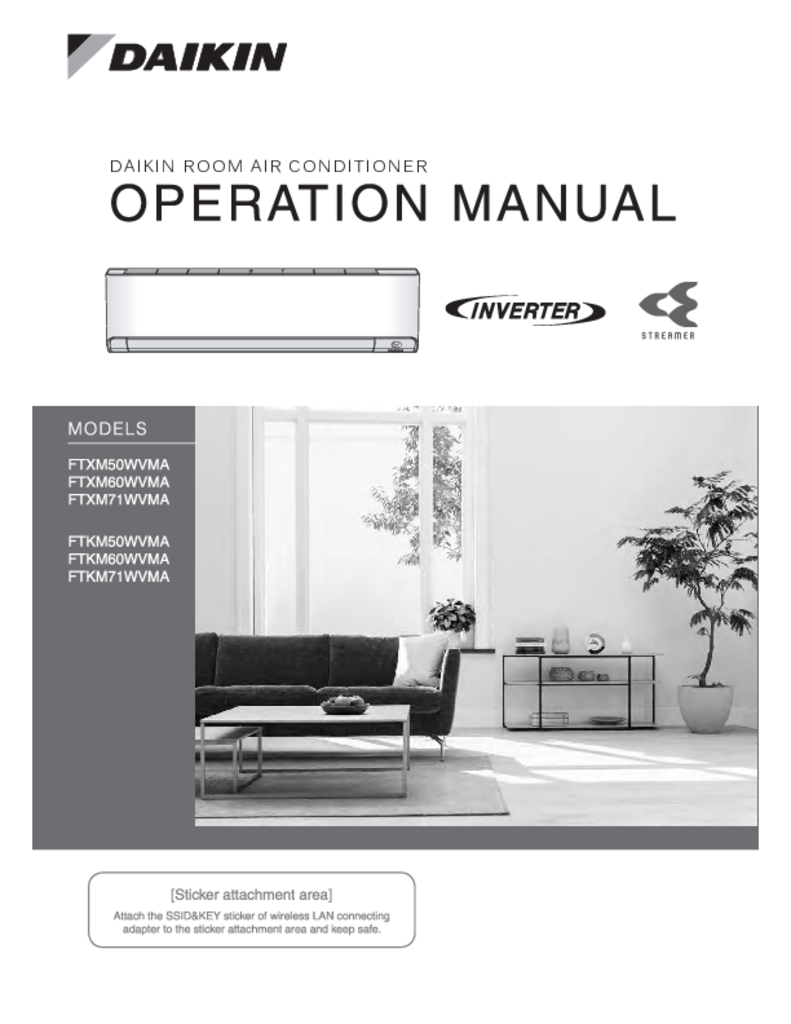

Daikin Alira X Operations Manu…

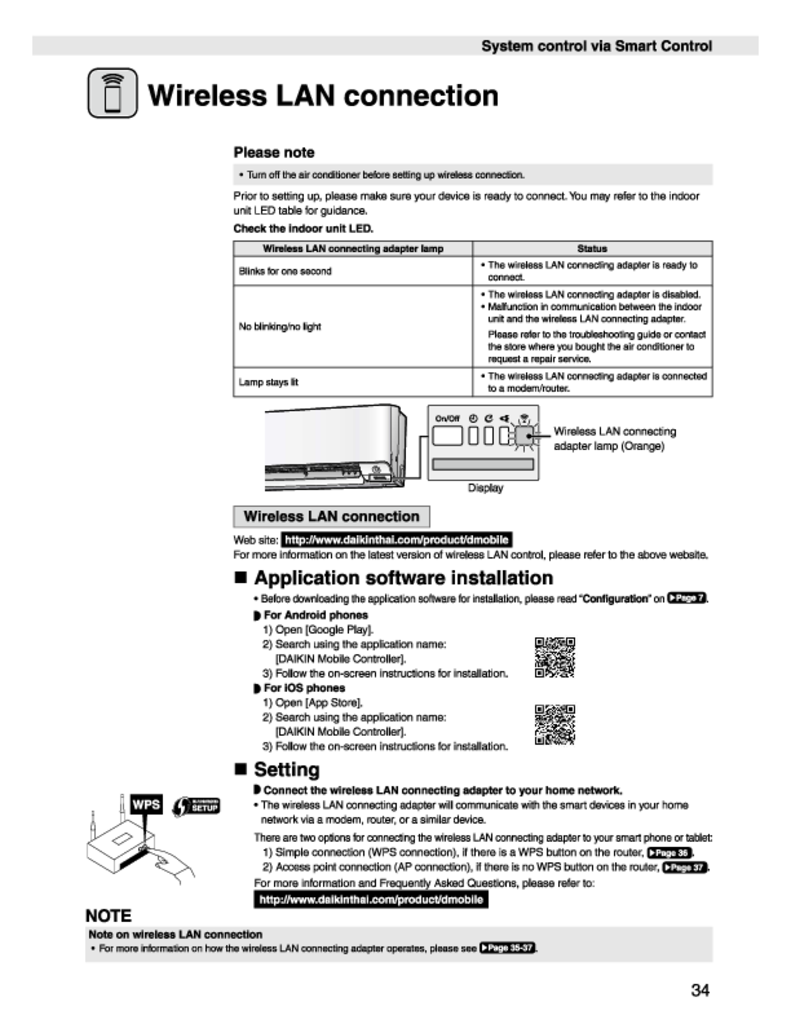

Daikin Alira X Wireless Config…
