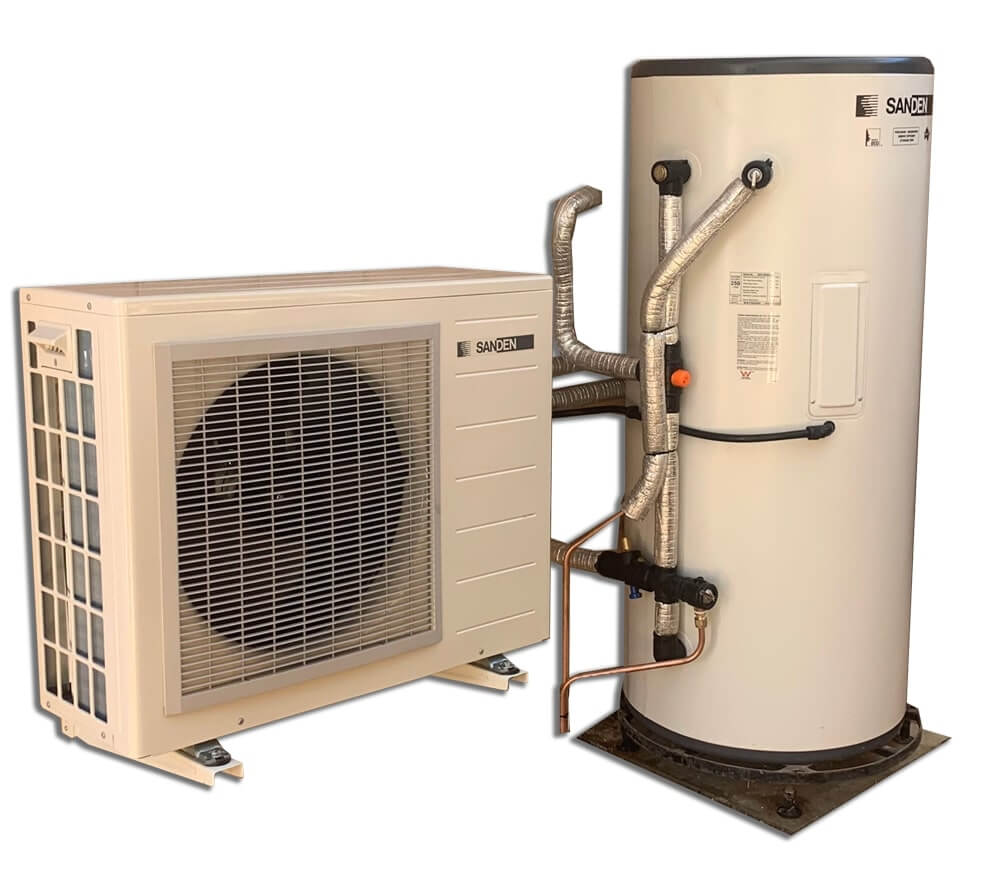

Description Sanden Eco Plus Heat Pump
The Sanden Eco® system is the most energy efficient hot water heat pump currently available on the market. As such, when you buy a Sanden system, you receive the highest amount of Small-scale Technology Certificates (STCs) of any currently available hot water heat pump system. These STCs can be used to discount your purchase price. For more information, contact us.
Unlike other hot water heat pump systems, the Sanden Eco® system uses a smarter split system where the heat pump unit and stainless steel tank are installed separately. This allows easy on-site handling and installation, as well as flexibility of the storage tank location, which can be up to 4 metres distance from the heat pump unit.
A heat pump is a device that uses a small amount of energy to move heat from one location to another.
It contains a fan that forces air through an evaporator that contains a refrigerant. The heat in the air passes through the evaporator and is absorbed by a natural refrigerant, R744 (CO2), which is ozone friendly and does not contribute to global warming.
The warm gaseous refrigerant is circulated in the system via a compressor. As it passes through the compressor, its pressure rises, as does its temperature. This hot refrigerant then passes through a heat exchanger to heat the water, which is finally pumped to the storage tank.
Models: GAUS-315EQTD, GAUS-315EQTE, GAUS-315EQTAQ, GAUS-315FQS, GAUS-315FQV, GAUS-315EQS, GAUS-315EQT.
# Heat Pump Unit
✓ A high Coefficient of Performance (COP=4.5^) results in significantly reduced energy use and CO2 emissions
✓ Up to 50% faster heat recovery than typical heat pumps.
✓ Uses unique Ozone friendly R744 (CO2) refrigerant
✓ Simple installation by Plumber & Electrician, with no Refrigeration Mechanic required
✓ An automatic heating cycle, which makes it perfect for use with power generated by on-roof photo voltaic (PV) solar electric systems.
- Fitted with in-built freeze protection, making it suitable for all climates (-10 ºC to +43 ºC)
- No backup/booster element required (ie. Unlike competitor HWHP systems)
- Whisper quiet operation, with industry leading noise level of 37 dB – very neighbour friendly!
- High quality, weather resistant construction for outdoor location
- 6 year Warranty, including parts and labour.
# Stainless Steel Tank
✓ 4 x tank sizes offered – 160L, 250L, 300L and 315L.
✓ High quality, Australian made extra long life 316 Marine Grade stainless steel cylinder.
✓ Fully insulated for minimal heat loss.
✓ Mains pressure rated.
✓ Safety pressure and temperature relief valve supplied.
✓ 15 year Pro-rata Warranty, including parts and labour.
The Price List is just for reference - Please contact us directly to get a more accurate price
Specifications Sanden Eco Plus 315 Litre Heat Pump
Heat Pump
| Dimensions | GAUS-315FQS | GAUS-315EQTD | GAUS-315FQV |
| Weight | 48kg | 56kg | 49 kg |
| Technical | |||
| Heat Output (at 32.45 ºC ambient / 18.74 ºC cold water inlet) | 4.99kW | 6.0 kW | |
| Electric Input (at 32.45 ºC ambient / 18.74 ºC cold water inlet) | 0.84kW | 2.3 kW | |
| COP (at 32.45 ºC ambient / 18.74 ºC cold water inlet) | 5.96^ | ||
| Refrigerant | CO2 (R744) | CO2 (R744) | R744（CO2) |
| Water Temperature Setting (Nominal) | 63 ºC | 65 ºC | 63 ℃ |
| Compressor | Scroll, with Inverter Control Technology | Variable | |
| Electrical Supply | 240V/50Hz/Single Phase | 220 – 240V/50Hz/1Ph | |
| Operating Noise Level (measured 1m from HP unit) | 37dB | 38dB | |
| Ambient Air Operating Temperature | Minus 10 ºC to Plus 42 ºC | Minus 10 ºC to Plus 43 ºC | |
| Maximum Operating Water Pressure | 700kPa | ||
| Water Connections & Settings | |||
| Inlet | ½” BSP, 12.7mm | ½” BSP, 12.7mm | |
| Outlet | ½” BSP, 12.7mm | ½” BSP, 12.7mm | |
| Country of Manufacture | Japan | Japan | Japan |
| Warranty | 6 Years*** | 6 Years*** | 6 Years*** |
Storage Tank
| Model No. | GAUS-315FQS | GAUS-315EQTD | GAUS-315FQV |
| Height | 1748mm | 1490 mm | 1626mm |
| Hot Water Outlet & PTR Valve | 1531mm | 1260 mm | 1432mm |
| Sensor Port | 1027mm | 940 mm | 1111mm |
| Cold Water Inlet / Heat Pump Flow | 221mm | 200 mm | 115mm |
| Diameter | 621mm | 680 mm | 638mm |
| Weight | 55kg | 70 kg | 90kg |
| Storage Capacity | 315L | 315 L | 315L |
| Inner Tank | Stainless Steel | Vitreous Enamel | |
| Water Connections & Settings | |||
| Tank Relief Valve Setting (PTR Valve) | 700(kPa) | 700(kPa) | 700(kPa) |
| Expansion Control Valve Setting (ECV) | 600(kPa) | 700(kPa) | 600(kPa) |
| Maximum Mains Pressure Settings | |||
| With ECV | 500(kPa) | 500(kPa) | 500(kPa) |
| Inlet Water Operating Pressure | 500(kPa) | 500(kPa) | 500(kPa) |
| Adjustable Tempering Valve | 1400(kPa) | 1400(kPa) | 1400(kPa) |
| Hot and Cold Connection | Rp 20 (3/4″) Female |
Rp 20 (3/4″) Female |
|
| Watermark Licence No. | WM-022333 | WM-022333 | |
| Colour | Surfmist & Ironstone Ends | Surfmist & Ironstone Ends | |
| Country of Manufacture | Australia | Australia | |
| Warranty | 15 Years Prorata*** (Excludes WA) |
5 Years( WA only) 10 Years Prorata (All other states) |
F.A.Q
Frequently Asked Questions
-
Does the Sanden Eco® heat pump hot water system require the assistance of an electric booster element to heat water, when outside ambient temperatures are very low?
No, unlike other competitor heat pump hot water (HPHW) systems, the Sanden Eco® HPHW system does not require an electric booster element
-
Should I get the official Sanden Quick Connection kit 15mm or 20mm?
The Sanden Quick Connection Kit includes the tempering valve, ECV (Expansion Cold Water Valve), elbows, insulation gloves for all the elbows and valves so you have the most efficient set up - you can't buy the insulation gloves separately. Makes the plumbing install much quicker (plumber only needs to source copper + lagging for the copper). Always highly recommended to ensure the Sanden is installed to specifications
Normally a house with upto 2 bedrooms is 15mm and 3+ is 20mm.
-
What do I do if the Sanden Eco® Plus heat pump hot water system has a problem?
Check our comprehensive Sanden not working checklist here if you think you have a problem with your Sanden Eco heat pump hot water system.
If you're still unsure after going through this guide - please lodge a Pure Electric Service Case here
