BYD HV Battery Storage

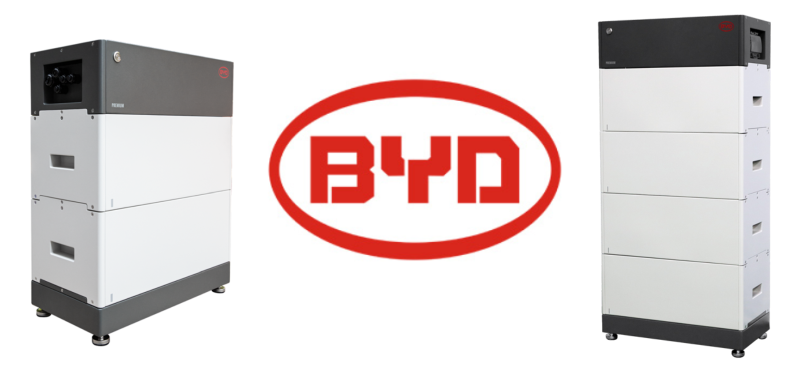

BYD Battery-Box Premium HVS / HVM high voltage

Dive into the specifications that make BYD HV Battery Storage the ultimate choice for your energy needs.

High Performance Specifications

  1. Capacity Range: BYD HV Battery Storage systems are available in a range of capacities to suit various applications, from residential to commercial and industrial. Capacities typically range from tens of kilowatt-hours (kWh) to multiple megawatt-hours (MWh), offering scalability and flexibility to meet diverse energy demands.

  2. Voltage Range: With a high-voltage design, BYD HV Battery Storage systems deliver robust performance and efficiency. Operating at voltages ranging from hundreds to thousands of volts, these systems ensure optimal energy conversion and distribution, maximizing overall system efficiency.

  3. Energy Density: BYD batteries boast a high energy density, enabling them to store more energy in a smaller footprint. This compact design maximizes usable space and allows for seamless integration into a variety of applications, whether in residential, commercial, or industrial settings.

  4. Cycle Life: BYD HV Battery Storage systems are engineered for longevity, with a cycle life that exceeds thousands of cycles. This exceptional durability ensures reliable performance over an extended lifespan, reducing the need for frequent replacements and minimizing total cost of ownership.


Advanced Features and Technology

  1. Battery Chemistry: BYD utilizes lithium iron phosphate (LiFePO4) chemistry in its batteries, offering numerous advantages over traditional lithium-ion chemistries. LiFePO4 batteries are renowned for their enhanced safety, thermal stability, and longevity, making them ideal for demanding applications where reliability is paramount.

  2. Integrated Battery Management System (BMS): Each BYD HV Battery Storage system is equipped with a sophisticated Battery Management System (BMS) that monitors and manages battery performance in real-time. The BMS optimizes charging and discharging processes, balances cell voltages, and safeguards against overcharging, overdischarging, and short circuits, ensuring the safety and longevity of the battery system.

  3. Scalability and Modularity: BYD HV Battery Storage systems are designed with scalability and modularity in mind, allowing for easy expansion and customization to meet evolving energy needs. Whether you're looking to increase storage capacity or integrate additional components such as solar inverters or grid controllers, BYD systems offer the flexibility to adapt to changing requirements with minimal downtime or disruption.

  4. Compatibility and Integration: With seamless compatibility with a wide range of renewable energy sources, grid infrastructure, and power management systems, BYD HV Battery Storage systems can be seamlessly integrated into new or existing energy ecosystems. Whether used in conjunction with solar photovoltaic (PV) systems, wind turbines, or grid-connected applications, BYD batteries enhance energy resilience, efficiency, and sustainability.

BYD HV Battery Storage



BYD vs. Tesla: Exploring Battery Technologies

While both BYD and Tesla are prominent players in the electric mobility and energy storage sectors, their approaches to battery technology differ:

  • BYD's Lithium Iron Phosphate (LiFePO4): BYD harnesses the power of lithium iron phosphate chemistry, offering enhanced safety, longevity, and thermal stability compared to traditional lithium-ion batteries.

  • Tesla's Lithium-Ion Batteries: Tesla primarily utilizes lithium-ion batteries, known for their high energy density and widespread use in electric vehicles and energy storage systems.



BYD HVS and HVM: Advanced High Voltage Storage Solutions

Within our BYD High Voltage (HV) range, we offer advanced solutions known as the High Voltage Storage (HVS) and High Voltage Module (HVM). These cutting-edge systems are engineered to meet the demands of specific high-voltage applications, delivering unparalleled performance, reliability, and scalability.

Key Features of BYD HVS and HVM:

1. Capable of High-Powered Emergency-Backup and Off-Grid Functionality: The BYD HVS and HVM systems are designed to provide high-powered emergency backup and off-grid functionality, ensuring reliable power supply during critical situations.

2. Highest Efficiency Thanks to a Real High-Voltage Series Connection: Utilizing a real high-voltage series connection, the HVS and HVM systems achieve the highest efficiency, maximizing energy conversion and utilization.

3. Patented Modular Plug Design for Maximum Flexibility: The patented modular plug design of the HVS and HVM systems eliminates the need for internal wiring, ensuring maximum flexibility and ease of use during installation and maintenance.

4. Cobalt-Free Lithium Iron Phosphate (LFP) Battery: The HVS and HVM systems feature cobalt-free lithium iron phosphate (LiFePO4) batteries, offering maximum safety, lifespan, and power output for reliable performance.

5. Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters: Both the HVS and HVM systems are compatible with leading 1 and 3 phase high-voltage battery inverters, ensuring seamless integration and interoperability with existing energy systems.

6. Highest Safety Standards like VDE 2510-50: The HVS and HVM systems adhere to the highest safety standards, including VDE 2510-50, ensuring safe and reliable operation in all conditions.



BYD BATTERY-BOX PREMIUM HVS / HVM

Specifications of BYD HVS and HVM:

Battery-Box Premium HVS:

 HVS 5.1HVS 7.7HVS 10.2HVS 12.8

Battery Module

(HVM module has two versions with two types of cells applied separately. Both versions share the same performance, only weights differ.)

HVS (2.56 kWh, 102.4 V, 38 kg)

Number of Modules2345

Usable Energy

(DC Usable Energy, Test conditions: 100% DOD, 0.2C charge & discharge at + 25°C. System Usable Energy may vary with different inverter brands)

5.12 kWh7.68 kWh10.24 kWh12.8 kWh

Max Output Current

(Power derating will occur between -10°C and +5°C.)

25 A25 A25 A25 A

Peak Output Current

(Power derating will occur between -10°C and +5°C.)

50 A, 3 s50 A, 3 s50 A, 3 s50 A, 3 s
Nominal Voltage204.8 V307.2 V409.6 V512 V
Operating Voltage160 - 240 V240 - 360 V320 - 480 V400 - 600 V
Dimensions (H/W/D)

762 x 585 x 298 mm

995 x 585 x 298 mm

1228 x 585 x 298 mm

1461 x 585 x 298 mm

Weight91 kg129 kg167 kg205 kg



Battery-Box Premium HVM:

 HVM 8.3HVM 11.0HVM 13.8HVM 16.6HVM 19.3HVM 22.1

Battery Module

(HVM module has two versions with two types of cells applied separately. Both versions share the same performance, only weights differ.)

HVM (2.76 kWh, 51.2 V, 35 / 38 kg)

Number of Modules345678

Usable Energy

(DC Usable Energy, Test conditions: 100% DOD, 0.2C charge & discharge at + 25°C. System Usable Energy may vary with different inverter brands.)

8.28 kWh11.04 kWh13.80 kWh16.56 kWh19.32 kWh22.08 kWh

Max Output Current

(Power derating will occur between -10°C and +5°C.)

50 A50 A50 A50 A50 A50 A

Peak Output Current

(Power derating will occur between -10°C and +5°C.)

75 A, 3 s75 A, 3 s75 A, 3 s75 A, 3 s75 A, 3 s75 A, 3 s
Nominal Voltage153.6 V204.8 V256 V307.2 V358.4 V409.6 V
Operating Voltage120~177 V160~236 V200~295 V240~354 V280~413 V320~472 V
Dimensions (H/W/D)

995 x 585 x 298 mm

1228 x 585 x 298 mm

1461 x 585 x 298 mm

1694 x 585 x 298 mm

1927 x 585 x 298 mm

2160 x 585 x 298 mm

Weight119 - 129 kg153 - 167 kg188 - 205 kg222 - 243 kg257 - 281 kg291 - 319 kg



General Data: HVS & HVM

Operating Temperature-10 °C to +50°C

Battery Type

Lithium lron Phosphate (LiFePO4)

CommunicationCAN/RS485

Protection Rating

IP55
Round-trip Efficiency≥96%

Environment

Indoor / Outdoor

Mounting Method

Floor Stand

Certification

VDE2510-50 / IEC62619 / CEC / CE / UN38.3

ApplicationsON Grid / ON Grid + Backup / OFF Grid

Warranty

(Conditions apply. Refer to BYD Battery-Box Premium Limited Warranty Letter.)

10 Years
Compatible Inverters

Refer to BYD Battery-Box Premium HVS / HVM Compatible Inverter List

Compatible Inverters



BATTERY-BOX PREMIUM HVS / HVM

Applications of BYD HVS and HVM:

The BYD HVS and HVM are versatile solutions suitable for a wide range of high-voltage applications, including:

  • Large-scale Grid-Connected Energy Storage Projects

  • Frequency Regulation

  • Peak Shaving

  • Renewable Energy Integration

Integration of Fronius GEN24 Plus Hybrid Inverters with BYD Battery-Box Premium

Experience unparalleled efficiency and reliability with the seamless integration of BYD Battery-Box Premium HVS and Fronius GEN24 Plus Hybrid Inverters. As leaders in renewable energy solutions, BYD and Fronius have once again demonstrated their excellence in the Energy Storage Inspection of 2022, securing top positions and setting new standards in the industry.

Why Invest in PV Storage?

  • A PV system primarily generates electricity during daylight hours, often producing surplus energy that goes unused. With a home storage unit like the BYD Battery-Box Premium HVS, you can store this excess energy for nighttime use, significantly reducing reliance on grid electricity and maximizing self-consumption.

Does it Make Financial Sense?

  • Investing in a solar battery not only provides environmental benefits but also offers financial advantages. By utilizing self-generated solar power, homeowners can save on expensive grid electricity, achieve self-sufficiency, and even have backup power during blackouts, enhancing overall energy resilience and cost-effectiveness.

✅ Efficiency and Financial Viability:

The efficiency of a PV storage system directly impacts its financial viability. With BYD Battery-Box Premium HVS and Fronius GEN24 Plus Hybrid Inverters, customers benefit from low conversion losses, maximizing economic returns and optimizing system performance over time.

✅ Technical Excellence:

The seamless integration of BYD Battery-Box Premium HVS and Fronius GEN24 Plus Hybrid Inverters ensures optimal performance. High efficiency ratings and System Performance Index (SPI) values reflect their superior energy management and performance compared to alternatives.

✅ Unlock Efficiency with Multi Flow Technology:

Fronius GEN24 Plus Hybrid Inverters feature innovative Multi Flow Technology, enabling simultaneous bidirectional energy flows. This technology enhances energy utilization, allowing customers to consume electricity while charging the battery, maximizing energy autonomy and efficiency.

Fronius Gen24 Plus with BYD Battery-Box Premium
