# Sanden Eco Plus 300 Litres Heat Pump

Sanden Eco® Plus Heat Pump - Leading hot water technology.

Sanden has more than 50 years experience in the production and global supply of air conditioning compressors. It has applied this advanced understanding of heat transfer technologies to the home environment, resulting in the development of the Sanden Eco® Plus Hot Water Heat Pump System. This highly innovative hot water system is manufactured in Japan.

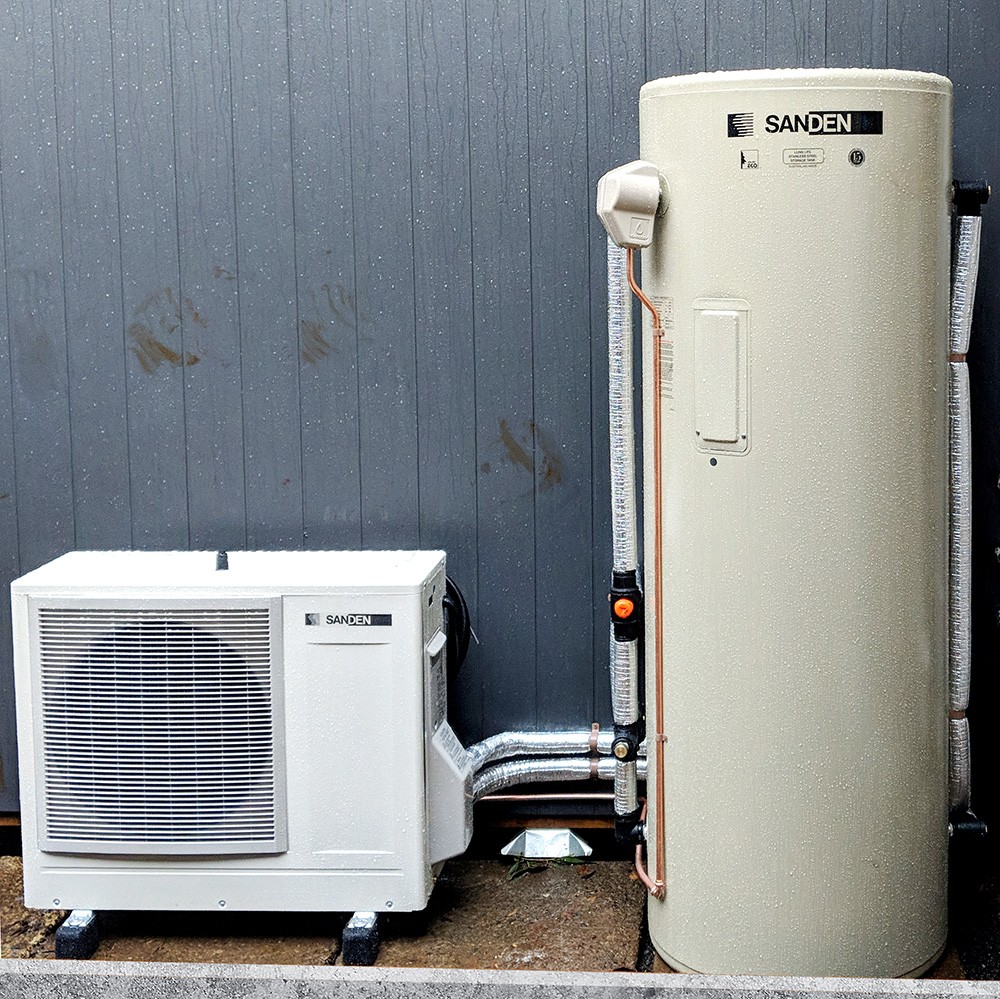

Sanden Eco Plus 300 Litre complete heat pump system stainless steel tank, made in Australia.

For more information, contact us.



Models: GAUS-300FQSGAU-A45HPC.

Features & Benefits

# Heat Pump Unit

✓ A high Coefficient of Performance (COP=5^) results in significantly reduced energy use and CO2 emissions

✓ Up to 50% faster heat recovery than currently available Hot Water Heat Pumps.

Whisper quiet operation, with industry leading noise level of 37dB - very neighbour friendly!

✓ Uses unique Ozone friendly R744 (CO2) refrigerant

✓ Simple installation by Plumber & Electrician, with no Refrigeration Mechanic required

✓ An automatic heating cycle, which makes it perfect for use with power generated by on-roof photo voltaic (PV) solar electric systems.

✓ Fitted with in-built freeze protection, making it suitable for all climates (-10 ºC to +43 ºC)

NOTE: In cold climate regions, the Heat Pump unit will run during the night, when the ambient temperature drops below 3ºC. If used in an Off Grid system, please ensure that adequate power is available.

✓ No backup/booster element required (ie. Unlike competitor HWHP systems)

✓ High quality, weather resistant construction for outdoor location

✓ 6 year Warranty (including parts and labour).

# Stainless Steel Tank

✓ 4 x tank sizes offered – 160L, 250L, 300L and 315L.

✓ High quality, Australian made extra long life 316 Marine Grade stainless steel cylinder.

✓ Fully insulated for minimal heat loss.

✓ Mains pressure rated.

✓ Safety pressure and temperature relief valve supplied.

✓ 15 year Pro-rata Warranty, including parts and labour.

Sanden Eco Heat Pump - 15 year warranty on the water tank
 15 year Pro-rata Warrant





#The Price List is just for reference - Please contact us directly to get a more accurate price

Model
Number

Tank Size

Unit
Price
Before
Rebates

STC/RECs Rebates - ALL

VIC Metro
Elec Change
(VEEC's)

VIC Rural
Elec Change
(VEEC's)

Zone
 1

Zone
 2

Zone
 3

Zone
 4

Zone
 5

GAUS-315FQS

315Lt

$4190

26x

25x

32x

34x

32x

49x

52x

GAUS-300FQS

300Lt

$4110

26x

25x

32x

34x

32x

49x

52x

GAUS - 250EQTB

250Lt

$4090

26x

25x

32x

34x

33x

48x

51x

GAUS-160FQS

160Lt

$3990

26x

26x

31x

34x

33x

48x

51x

GAUS - 160EQTA

315Lt

$5100

26x

25x

31x

33x

33x

49x

52x

replacement heatpump

N/A

$3000

N/A

N/A

N/A

N/A

N/A

N/A

N/A

The Price List is just for reference - Please contact us directly to get a more accurate price

Years of worry free hot water – we guarantee it

Every Sanden Eco® Plus Hot Water Heat Pump System is fully backed by our extended warranties.

Sanden Eco® Plus Hot Water Heat Pump units feature a 6 year class leading warranty, while the stainless steel storage tank also has a class leading 15 year warranty, providing you with peace of mind.

For full warranty conditions, please refer to www.pure-electric.com.au

The Sanden warranty applies alongside, and in addition to, any rights or remedies to which you may be entitled under the Australian Consumer Law.

Specifications Sanden Eco Plus 300 Litre Heat Pump

Heat Pump

Dimensions GAUS-300FQS GAU-A45HPC
Weight 48kg 48kg
Technical
Heat Output (at 32.45 ºC ambient / 18.74 ºC cold water inlet) 4.99kW 4.99kW
Electric Input (at 32.45 ºC ambient / 18.74 ºC cold water inlet) 0.84kW 0.84kW
COP (at 32.45 ºC ambient / 18.74 ºC cold water inlet) 5.96^ 5.96^
Refrigerant CO2 (R744) CO2 (R744)
Water Temperature Setting (Nominal) 63 ºC 63 ºC
Compressor Scroll, with Inverter Control Technology Scroll, with Inverter Control Technology
Electrical Supply 240V/50Hz/Single Phase 240V/50Hz/Single Phase
Operating Noise Level (measured 1m from HP unit) 37dB 37dB
Ambient Air Operating Temperature Minus 10 ºC to Plus 42 ºC Minus 10 ºC to Plus 42 ºC
Maximum Operating Water Pressure 700kPa
Water Connections & Settings
Inlet ½” BSP, 12.7mm ½” BSP, 12.7mm
Outlet ½” BSP, 12.7mm ½” BSP, 12.7mm
Country of Manufacture Japan Japan
Warranty 6 Years*** 6 Years***

Note: Materials and specifications are subject to change without notice

Storage Tank

Model No. GAUS-300FQS SAN-300SAQA
Height 1891mm 1891mm
Hot Water Outlet & PTR Valve 1693mm 1693mm
Sensor Port 1086mm 1086mm
Cold Water Inlet / Heat Pump Flow 208mm 208mm
Diameter 580mm 580mm
Weight 50kg 50kg
Storage Capacity 300L 300L
Inner Tank Stainless Steel Stainless Steel
Water Connections & Settings
Tank Relief Valve Setting (PTR Valve) 700(kPa) 850(kPa)
Expansion Control Valve Setting (ECV) 600(kPa) 700(kPa)
Maximum Mains Pressure Settings
With ECV 500(kPa) 500(kPa)
Inlet Water Operating Pressure 500(kPa) 500(kPa)
Adjustable Tempering Valve 1400(kPa) 1400(kPa)
Hot and Cold Connection Rp 20 (3/4″)
Female
Rp 20 (3/4") Female
Watermark Licence No. WM-022333 WM-022333
Colour Surfmist & Ironstone Ends Surfmist & Ironstone Ends
Country of Manufacture Australia Australia
Warranty 15 Years Prorata*** (Excludes WA) 15 Years Prorata*** (Excludes WA)
