Aiko Neostar 3S 475 BLK

Aiko Neostar 3S 475 BLK

New

QUICK REVIEW

The third-generation Aiko NEOSTAR panels showcase advanced technology, delivering exceptional efficiency. With their sleek all-black finish, they offer a modern, refined appearance.

  • Model: AIKO-A475-MCE54Mb

  • Efficiency: 23.8%

  • Minimal performance loss: ≤1% in the first year and no more than 0.35% annually thereafter

  • Extended coverage: 25-year product warranty and 30-year performance warranty

  • Improved temperature coefficient: -0.26%/°C

Aiko NEOSTAR – Third Generation Upgrade

The third-generation Aiko NEOSTAR panels deliver a comprehensive upgrade in performance, safety, and long-term value. With higher power output ranging from 465W to 495W and an impressive efficiency of up to 24.8% (495W), these panels are engineered for maximum energy yield and high returns.

Designed for lasting reliability, they feature low performance degradation, with no more than 1% in the first year and only 0.35% annually in subsequent years, ensuring stable output for decades. A superior temperature coefficient of -0.26%/°C further enhances performance in hot climates.

Backed by a 25-year product warranty and 30-year performance warranty, the Aiko NEOSTAR offers exceptional durability, high safety standards, and excellent return on investment for residential, commercial, or utility-scale projects.

The NEOSTAR 3S54 offers multiple benefits, including:

  • Optimised performance under partial shading

  • Improved temperature coefficient for greater efficiency

  • Enhanced tolerance to high temperatures

  • Resistance to micro-cracks for long-term reliability

  • Increased power output

  • Reduced balance of system (BOS) costs

Testimonials

What they are saying about us

Fantastic and professional companyFantastic and professional company. From quote to completion. On time, excellent follow-up to ensure that my system worked perfectly, and I was happy. l highly recomm...
D

Dorothy

Pure Electric were a great team to work withI had Sanden Heat Pump HWS installed this week. Pure Electric were a great team to work with, I can only recommend them very highly. The Sanden system works...
M

Malcolm Edgar

Helped Installing SolarHelped with installing solar and converting our gas electric house into just electric in 2014. It saves us a large amount of money per year as we no longer get power bills and e...
S

Spencer Porteous

F.A.Q

Frequently Asked Questions

  • Yes it certainly is. Each panel type typically gets a 25 year performance warranty and at least a 10 year manufacturing warranty, depending on the panel chosen. Jinko panels offer a 10 year manufacturing warranty, QCells panels 12 years, and SunPower panels offer a 25 year manufacturing warranty (parts and labour).

    Check out your panel and inverter warranty sheets for more details!

  • If your house is single phase power, the amount of rooftop solar PV that you can install will depend  on your electricity network provider, as each electricity network provider has different rules.

    In almost all instances, you can install more inverter capacity than what the electricity network provider says, so long as you grid export limit your solar PV system.  Note:  Not all inverters have grid export limit capability.

    Below is a table showing the allowed capacity (inverter capacity and your grid export limit), for each of the electricity network providers for single phase households:

    SA Power Networks (SA) max 10kW inverter capacity, 5kW export limit
    Powercor (VIC) no inverter limit, 5kW export limit
    CitiPower (VIC) no inverter limit, 5kW export limit
    Ausnet Services (VIC) max 10kW inverter capacity, 5kW export limit
    United Energy (VIC) max 10kW inverter capacity, 10kW export limit
    Jemena (VIC)  max 10kW inverter capacity, 10kW export limit
    Energex (QLD) max 10kW inverter capacity, 5kW export limit
    Ausgrid (NSW) max 10kW inverter capacity, 10kW export limit
    EVO Energy (ACT) max 10kW inverter capacity, 5kW export limit
  • You want as large a rooftop solar PV system as you can fit on your roof to reduce the amount of time you need to rely on your backup generator  that may be required for periods during winter periods or times of low solar radiation (i.e. multiple cloudy days).

    We generally recommend a minimum 10kW solar PV system, but the final size will depend on your anticipated load/demand. We can help you work this out by using our load profile sheet as part of our comprehensive quoting process.

Key Features

  • High Efficiency Output: Generates up to 495W with a module efficiency of 24.8%, maximising energy yield per square metre.

  • N-Type Back Contact Technology: Utilises an advanced cell structure for higher efficiency, slower degradation, and minimal light-induced degradation (LID).

  • 30-Year Linear Performance Warranty: Ensures 90.6% output after 30 years, with an annual degradation rate of just 0.35% from the second year onwards.

  • Partial Shading Optimisation: Maintains strong performance in low-light or shaded conditions with three bypass diodes and an intelligent string layout.

  • Robust Design for Harsh Conditions: Certified for 5400Pa front load, 2400Pa rear load, and hail resistance (40mm at 27.5 m/s).

  • Premium Aesthetics: Features a sleek black anodised aluminium frame and low-profile design for a refined, uniform look.

  • Temperature Resilience: Low temperature coefficient (-0.26%/°C) helps sustain performance even in high heat.

  • Trusted Connector Integration: Equipped with Staubli PV-KST4/KBT4 EVO 2A/6I connectors for quick, reliable installation.

Electrical Characteristics

(STC: AM1.5 1000W/m² 25℃ NOCT: AM1.5 800W/m² 20℃ 1m/s)

Power Binning Tolerance:0~+3%

Module TypeAIKO-A465-MCE54MbAIKO-A470-MCE54MbAIKO-A475-MCE54MbAIKO-A480-MCE54MbAIKO-A485-MCE54MbAIKO-A490-MCE54MbAIKO-A495-MCE54Mb
Test ConditionsSTCNOCTSTCNOCTSTCNOCTSTCNOCTSTCNOCTSTCNOCTSTCNOCT
Pmax [W]465352470356475360480364485367490371495375
Voc [V]40.6038.5240.7038.6140.8038.7140.9038.8041.0038.9041.1038.9941.2039.09
Vmp [V]34.2032.4534.3032.5434.4032.6434.5032.7334.6032.8334.7032.9234.8033.02
Isc [A]14.6911.8714.7211.8914.7611.9314.8011.9614.8411.9914.8812.0214.9212.06
Imp [A]13.6010.8713.7110.9613.8111.0413.9211.1314.0211.2114.1311.2914.2311.37
Module Efficiency23.3%23.5%23.8%24.0%24.3%24.5%24.8%



Product Specification

Cell TypeN-Type BC
Glass3.2mm tempered glass
BacksheetHigh weather resistant backsheet
FrameBlack anodized aluminum
Cable4mm²(IEC) 12AWG(UL) ±1200mm
No. of Cells108(6*18)
Junction BoxIP68, 3 bypass diodes
Connector

PV-KST4-EVO 2A/6I/ PV-KBT4-EVO 2A/6I

from Staubli Electrical Connectors AG

Weight20.6kg±3%
Dimension1762*1134*30mm
Package Detail37pcs per pallet / 222pcs per 20'GP / 962pcs per 40'HC



Temperature Ratings (STC)

Temperature Coefficient of Isc+ 0.05%/ °C
Temperature Coefficient of Voc- 0.22%/ °C
Temperature Coefficient of Pmax- 0.26%/ °C



Installation Guide

T98 max70℃
Module Operation Temperature-40℃ - +85℃
Maximum Series Fuse Rating25A
Protection ClassClassⅡ
PMAX and VOC and ISC Tolerance±3%
Maximum System VoltageDC1500V
Maximum Static LoadingFront 5400Pa Back 2400Pa
Hail Test40 mm diameter hail at 27.5 m/s
Fire RatingIEC Class C

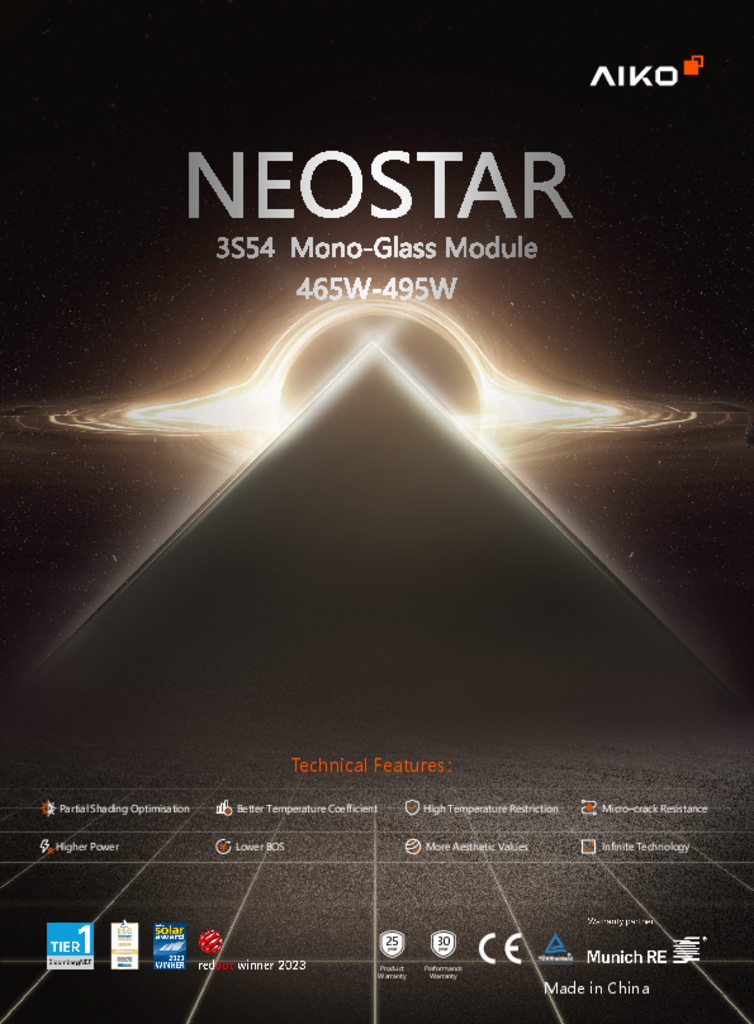

Aiko Neostar 3S 475W Datasheet

Aiko Neostar 3S 475W Datasheet
