Aiko Neostar 2S 455W Black
GET A FREE QUOTE
QUICK REVIEW
The Aiko Neostar 2S 455W Black panel, part of Aiko's second-generation series, is a high-efficiency solar panel offering 22.8% performance. Engineered for long-term reliability with minimal degradation, it comes with a 25-year product warranty and a 30-year performance warranty.
The panel is built to withstand high temperatures, micro-cracks, and partial shading, ensuring durability and consistent energy output. Its front-grid-free, sleek design maximizes sunlight absorption and enhances safety for rooftop installations.
All Black panel
Part number: AIKO-A455-MAH54Mb
Winner - Intersolar Award 2023
Winner - Red Dot Design Award 2023
Second Generation Comprehensive Upgrade:
Optimised for Partial Shading
Improved Temperature Coefficient
Enhanced High-Temperature Performance
Micro-Crack Resistance
Increased Power Output
Reduced Balance of System (BOS) Costs
Sleek Design with No Front Grid
The 'Neostar' module series offers a power range of 440-470 W, specifically designed for residential applications. Available in both mono (2N/2P/2S) and dual-glass (2S+) configurations, these modules deliver high power output within a compact footprint (1757 x 1134 mm; <2m²). With efficiency levels reaching up to 23.6%, the Neostar series combines superior performance with sleek, all-black aesthetics and enhanced roof safety features.
All Back Contact (ABC) Technology
AIKO Solar's All Back Contact (ABC) technology marks a breakthrough in photovoltaic cell design, significantly boosting both efficiency and aesthetics. By relocating all electrical contacts to the rear of the solar cells, ABC technology maximizes the surface area exposed to sunlight, enhancing energy conversion efficiency. This design reduces shading losses and optimizes light absorption, resulting in higher power output compared to conventional front-contact cells. The absence of front-side grid lines also improves the panels' appearance, making them ideal for residential and commercial installations where aesthetics are a priority. AIKO’s ABC technology highlights the company's dedication to innovation and sustainability in renewable energy solutions.
AIKO NEOSTAR N-Type ABC Module
The AIKO NEOSTAR N-Type ABC module is designed for residential solar systems, combining advanced All Back Contact (ABC) technology with high efficiency, durability, and aesthetic appeal, making it a top choice for residential energy solutions.
High Power Output
Delivering between 440 and 475W, the AIKO NEOSTAR module maximizes energy production through its cutting-edge cell technology, ensuring superior performance and contributing to overall system efficiency.
Optimised for Partial Shading
Engineered for optimal performance even in partial shade, the NEOSTAR module minimizes shading impact, ensuring consistent energy generation, making it suitable for installations in varied environments.
Sleek Matte Design
With its clean matte finish, the AIKO NEOSTAR module offers a sleek, modern aesthetic that enhances the look of any installation. It seamlessly integrates with contemporary architectural styles, making it a visually appealing option for Australian homes.
Enhanced Rooftop Safety
The AIKO NEOSTAR module prioritizes safety with improved features for rooftop installation and maintenance, ensuring reliable and secure operation throughout its lifespan.
Testimonials
What they are saying about us
F.A.Q
Frequently Asked Questions
-
Is my rooftop solar system covered by warranty?
Yes it certainly is. Each panel type typically gets a 25 year performance warranty and at least a 10 year manufacturing warranty, depending on the panel chosen. Jinko panels offer a 10 year manufacturing warranty, QCells panels 12 years, and SunPower panels offer a 25 year manufacturing warranty (parts and labour).
Check out your panel and inverter warranty sheets for more details!
-
More details on the rooftop solar warranty cover?
Generally, most mechanical defects will be covered during the warranty period, as long as they are deemed a manufacturing fault. Most suppliers also guarantee 80% power production for the first 25 years of your solar power system’s life.
It is important to understand that warranty terms and conditions vary from supplier to supplier.
-
What are the benefits of rooftop solar power?
There are many benefits in installing a solar PV system including:
- Reduce or eliminate your power bill - you can regain control of your electricity costs.
- A revenue generating asset - you make back many times the initial cost of the system over the lifetime of your solar PV system.
- Add value to your home - a solar system adds value to your home increasing the resale value.
- Reduce your carbon footprint - a solar system generates no greenhouse gases while in operation giving you zero carbon power and lowing your overall carbon footprint.
- Reduce or eliminate your power bill - you can regain control of your electricity costs.
High Efficiency: Utilise ABC N-type technology to achieve maximum energy output from a compact area. Delivers 22.8% energy efficiency.
Exceptional Durability: Engineered with top-tier durability standards for long-term, reliable performance.
Sleek Aesthetics: The busbar-free, black-frame design offers a modern and seamless look for any rooftop.
Minimal Performance Degradation: Less than or equal to 1% in the first year, and ≤ 0.35% annually thereafter.
Premium Warranty: Includes a 25-year product warranty and a 30-year performance warranty, providing lasting peace of mind.
Enhanced Temperature Coefficient: -0.26% per °C for improved performance in varying temperatures.
Mechanical Specification
Cell Type | N-Type ABC |
Front Cover Mono glass | 3.2mm tempered glass |
Frame | Black anodised aluminum |
Cable | 4mm2(IEC) 12AWG(UL) 1200mm |
No. of Cells | 108(6*18) |
Junction Box | IP68,3 bypass diodes |
Connector | MC4-EVO2 |
Weight | 21.5kg |
Dimension | 1757*1134*30mm |
Package Detail | 36pcs per pallet/216 pcs per 20' GP/936pcs per 40' HC |
Electrical Characteristics
(STC: AM1.5 1000W/m2 25°C NOCT: AM1.5 800W/m2 20°C 1m/s. Power Tolerance:0~+3%)
Module Type | AIKO-A455-MAH54Mb | |
Test Conditions | STC | NOCT |
Pmax [W] | 455 | 343 |
Voc [V] | 41.00 | 38.72 |
Vmp [V] | 34.56 | 32.64 |
Isc [A] | 14.22 | 11.50 |
Imp [A] | 13.17 | 10.51 |
Module Efficiency | 22.8% | |
Temperature Ratings (STC)
Temperature Coefficient of Isc | + 0.05%/ °C |
Temperature Coefficient of Voc | - 0.22%/ °C |
Temperature Coefficient of Pmax | - 0.26%/ °C |

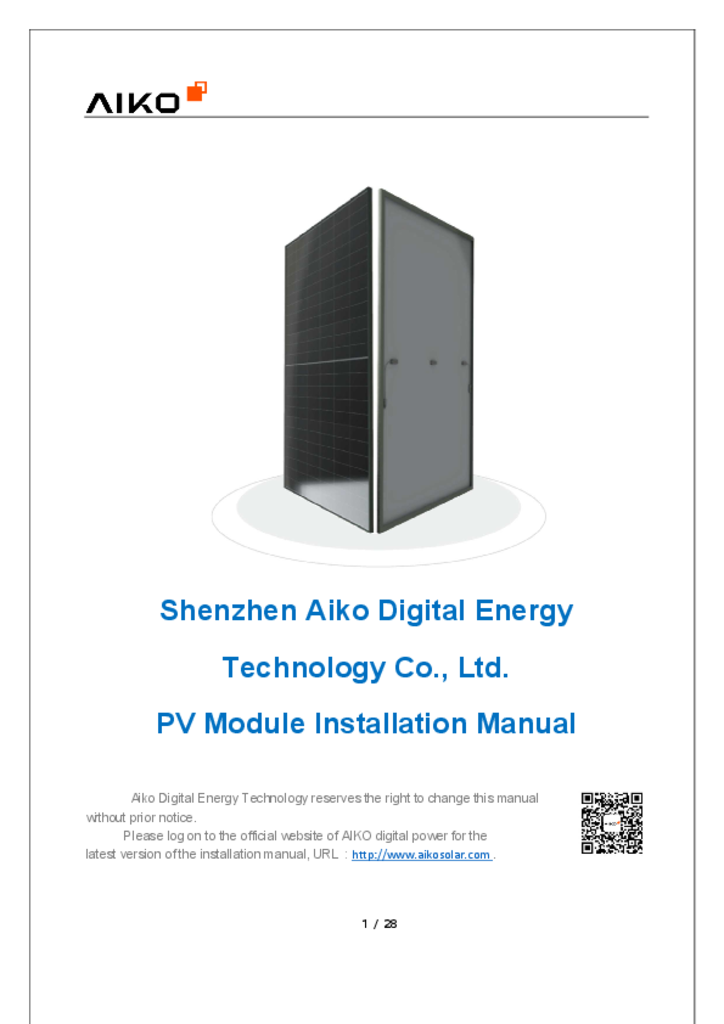

Installation Guide
Operation Temperature | -40°C - +85°C | |
Maximum Series Fuse Rating | 25A | |
Protection Class | Class II | |
Voc and Isc Tolerance | ±3% | |
Maximum System Voltage | DC1500V | |
Maximum Static Loading | Front 5400Pa | Back 2400Pa |
Hail Test | 25 mm diameter hail at 23 m/s | |
Fire Rating | IEC Class C | |
The PV modules must be regularly inspected and maintained, especially within the warranty period, which is the responsibility of the user. And notify AIKO' customer service personnel as soon as possible in case of any damage or other significant abnormalities of PV modules.
1. Clean
The power output of photovoltaic modules is related to the incident light intensity. Dust accumulation or other obstructions will reduce the power output of photovoltaic modules. The dirt on the PV module shall be cleaned in time.
As for cleaning frequency, it depends on the accumulation rate of dirt. If the PV module has enough inclination angle, the rainwater will clean the surface of the PV module, which can reduce the cleaning frequency.
It is recommended to use a sponge moistened with clean water to wipe the glass surface of photovoltaic modules. It is strictly prohibited to use cleaning agents containing acid or alkali to clean PV modules. It is forbidden to use brush and other tools with rough surface for cleaning.
It is recommended to clean PV modules in the early morning or evening when the light is weak and the temperature of PV modules is relatively low.
2. Visual inspection
Visually inspect the PV module for appearance defects, such as:
Whether the photovoltaic module glass is broken;
Whether the photovoltaic module backplane is cracked or otherwise abnormal;
Whether the junction box is damaged and whether the cable is damaged;
Whether the PV module is covered by foreign matters and shadows;
Check whether the bolts fixing PV module and bracket are loose or rusted, and adjust or replace them in time;
Check whether the PV module is well grounded.
3. Connector and cable inspection
It is recommended to carry out preventive inspection once every six months, such as:
Check the tightness of the connector and the firmness of the cable;
Check the junction box sealant for cracks.
