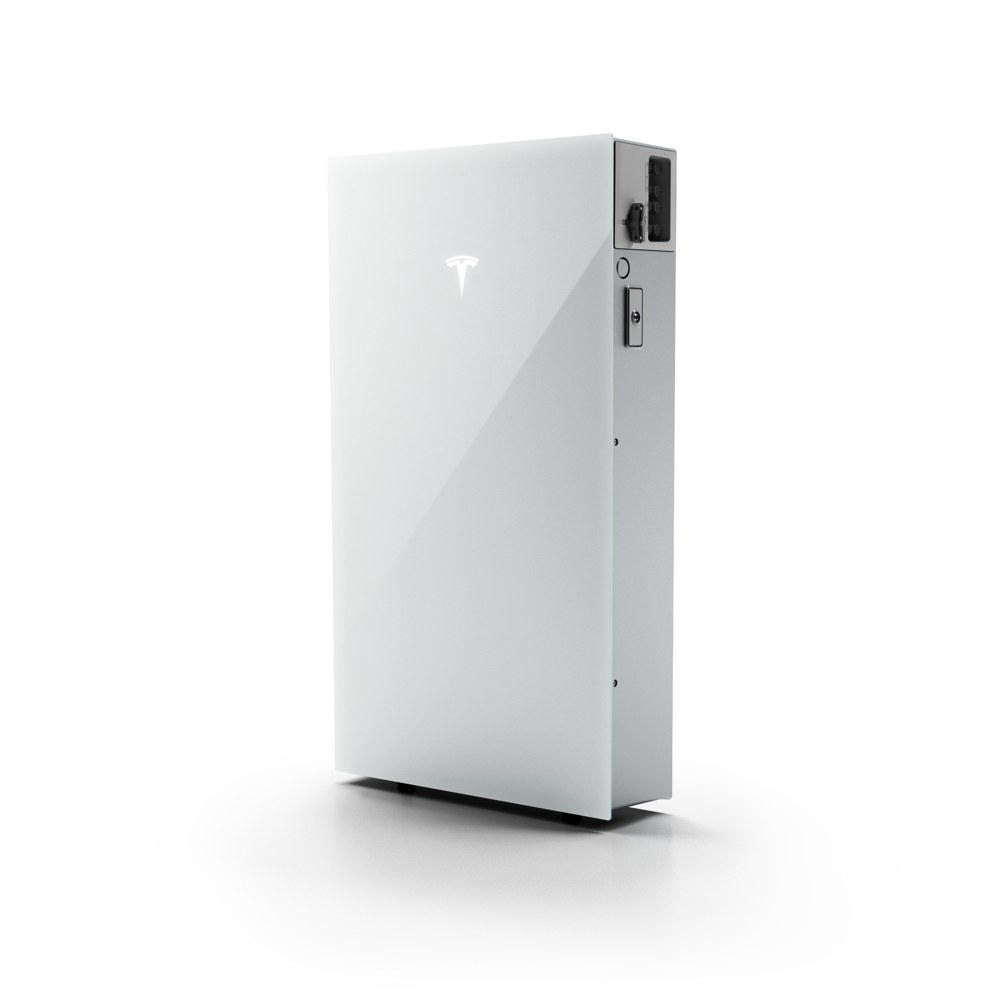

Tesla Powerwall 3P
GET A FREE QUOTE
QUICK REVIEW
Powerwall 3P is a fully integrated solar and battery system built for homes with a three-phase supply. It stores energy from solar or the grid, delivers up to 15 kW of continuous power with solar (up to 11.5 kW from the battery alone), and is installed with Backup Gateway 2 for whole-home backup and energy monitoring.
Model Number: 1988000-xx-y
Customer Interface: Tesla App
Warranty: 10 Years
In-built Solar Inverter AC Rating: 5 kW, 10 kW, 11.5 kW, 15 kW (configurable)
Benefits of your Tesla Powerwall 3P
Powerwall 3P is a fully integrated solar and battery system built for homes with a three-phase electrical connection. Customers get whole-home backup, cost savings and energy independence by producing and consuming their own energy, and can manage their system in the Tesla app to meet their energy goals.
Powerwall 3P supports up to 20.4 kWp of solar across four MPPTs and delivers up to 15 kW of continuous AC power with solar, or up to 11.5 kW from the battery alone, with 21 kW of peak power for three-phase loads. A single unit can meet the power needs of most three-phase homes, and the system scales to four Powerwall 3P units and three Expansion units.
Powerwall is compact, safe and includes a built-in battery inverter, which provides easier integration and over-the-air updates for new features and functions
✔️ Self-Powered Home : Use solar and Powerwall to reduce reliance on the grid and run your home off solar day and night.
✔️ Energy Savings: Reduce your power bills by charging during off-peak times
✔️ Backup Power: Protect your home from a power outage with seamless and reliable backup power
✔️ Home Energy Control: Manage and control your home energy use in real-time with the Tesla mobile app
How does the Tesla Powerwall 3P Work?
1 - Solar begins powering your home in the morning when the sun rises.
2 - Excess solar energy charges your Powerwall.
3 - Powerwall runs your home at night.
Tesla Powerwall 3P
Testimonials
What they are saying about us
F.A.Q
Frequently Asked Questions
-
Why does the Tesla mobile app show power flows or values that appear inaccurate?
Power flow on the monitoring Tesla mobile app shows the instantaneous flow of power of your home energy system. On a typical day a combination of solar, grid, and Powerwall may be powering your home. Solar energy may flow to the grid when your home does not need it and Powerwall is full. When charging your Powerwall to its backup reserve level or in Backup-only mode, solar power will flow directly from solar to Powerwall while grid energy is drawn for the home.
-
Tesla mobile app - log in / set up / learn more
Once your Powerwall has been turned on, download the Tesla app and start monitoring your Powerwall and home energy usage.
Step 1: Log In
Log in using the same email address you used to order Powerwall with solar. If you are already a Tesla vehicle owner, log in using the same email address you use to sign into your Tesla Account.Step 2: Set Up Notifications
Receive notifications when Powerwall starts backing up your home during instances such as a power outage.Step 3: You are now logged into the Tesla app
Learn more about the features of the Tesla mobile app. You can also learn more about using and customizing your Powerwall below:
Power Everything
Powerwall reduces your reliance on the grid by storing your solar energy for use when the sun isn’t shining. Use Powerwall alone or combine it with other Tesla products to save money, reduce your carbon footprint and prepare your home for power outages. In addition, Tesla operates Australia's largest Virtual Power Plant, a network of homes to support the grid with clean renewable energy.
💡 Power Your Home
🔋 Recharge with clean energy when paired with solar
Backup Protection
Powerwall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike generators, Powerwall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days.
🔆 Store Energy
24/7 Backup Protection
Use stored energy to power your home during an outage
Keep appliances running with little interruption
Monitor and Optimise
With the Tesla app, you can monitor your home’s energy production and consumption in real time. Set your preferences to optimise for energy independence, outage protection or savings. With instant alerts and remote access, you can control your system from anywhere.
💲 Customise settings for personalised savings
24/7 Stay connected with instant alerts before severe weather
📱 Manage your energy
Modern and Compact
With easy installation and a minimalist design, Powerwall complements a variety of home styles. The compact, all-in-one construction features versatile mounting options for indoor or outdoor spaces.
✅ Child and pet friendly with no exposed wires or hot vents
4x Scale up to 4 Powerwall 3P units and 3 Expansion units to meet your needs
☔️ IP67 sealed and flood resistant to 0.6 m, tough for all weather conditions
Tesla Powerwall 3P

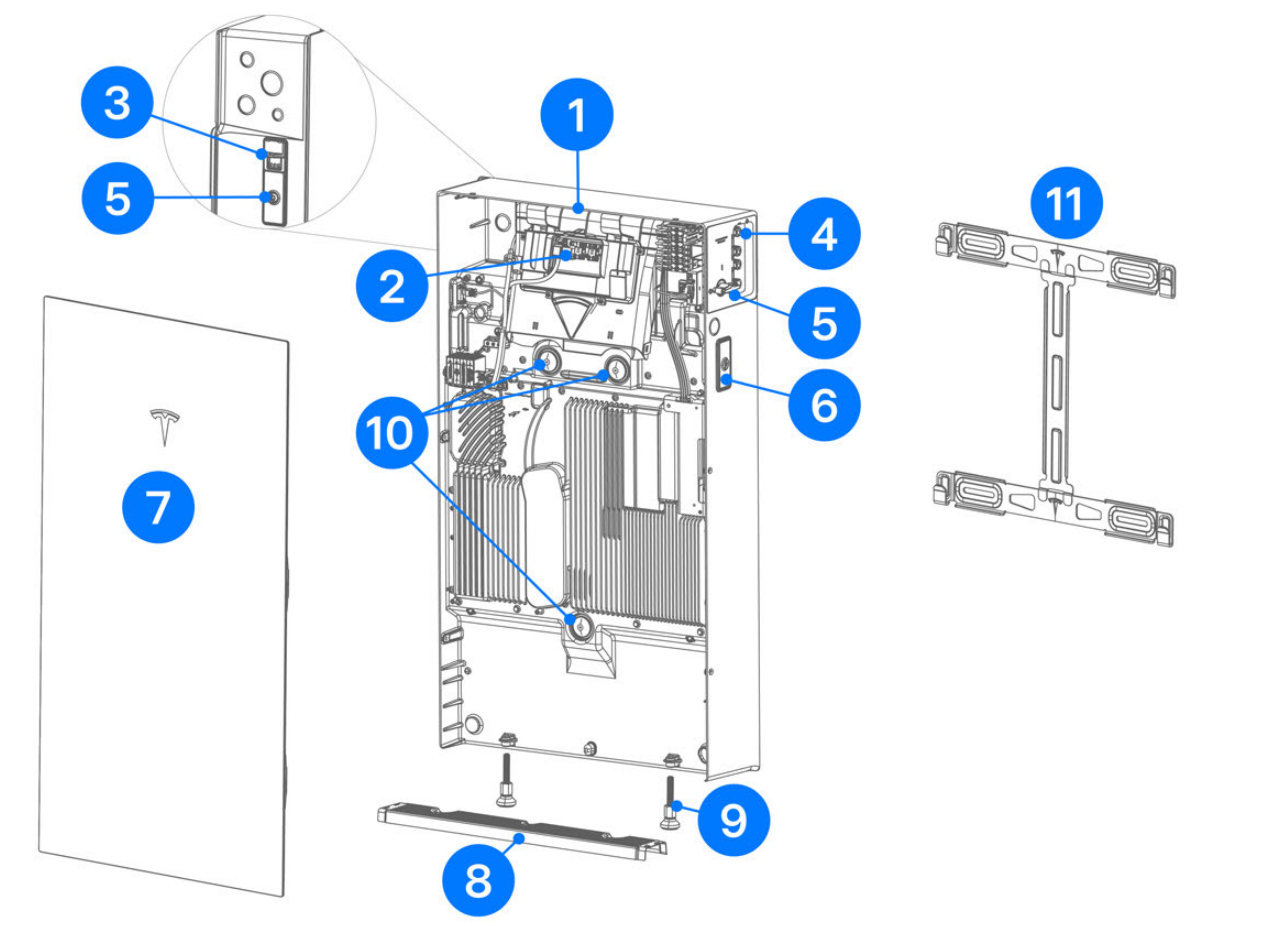

Powerwall 3P includes the following components and features:
Component/Feature | Name |
1 | Powerwall 3P |
2 | Tesla Asset Controller (TACO) |
3 | On / Off switch |
4 | Integrated Stäubli MC4-Evo 2 connectors for PV connections |
5 | Integrated DC Isolator |
6 | Expansion port cover |
7 | Front cover |
8 | Air intake screen |
9 | Leveling feet |
10 | Safety valves |
11 | Wall mounting bracket |
Typical System Layouts
Whole Home Backup
A Powerwall 3P system for whole home backup stores energy from solar or the grid and, with Backup Gateway 2, powers the entire home during an outage, including three-phase appliances like air conditioners and pool pumps.
Partial Home Backup
A Powerwall 3P system for partial home backup powers selected circuits from a backup distribution board during an outage, while the rest of the home stays connected to the grid.
Multi-Powerwall 3P System
A Multi-Powerwall 3P system combines up to four Powerwall 3P units, with up to three Expansion units on the lead unit, for up to 60 kW of power and 94.5 kWh of storage.
System Technical Specifications
Nominal Grid Voltage (Input & Output) | 230/400 VAC |
Grid Type | Three phase |
Supported Grid Configurations | 4-conductor Wye (L1, L2, L3, N) |
Supported Earthing Systems | TN or TT networks |
Frequency | 50 Hz |
Usable Battery Energy (AC) (Values provided for 25°C, at beginning of life. 5 kW charge/discharge power.) | 13.5 kWh AC |
Nominal AC Output Power (15 kW AC output is available at ambient temperatures ≤ 25°C with sufficient solar generation. Up to 11.5 kW AC output is available when solar is not available, or at higher temperatures.) | 15 kW 11.5 kW 10 kW 5 kW |
Maximum Apparent Power | 15,000 VA 11,500 VA 10,000 VA 5,000 VA |
Maximum Continuous Current | 21.74 A 16.67 A 14.49 A 7.25 A |
Maximum AC Output Power per Phase | 5 kW |
Minimum Circuit Breaker Size | 32 A |
Maximum Continuous Charge Power | 5 kW (Powerwall 3P only) 8 kW (with Expansion units) |
Output Power Factor Rating | -1 to 1 (Grid Code configurable) |
Maximum Output Fault Current per Phase (1 s) | 54 A |
Maximum Short-Circuit Current Rating | 10 kA |
Peak AC Output Power (1 s) | 21 kW for three-phase loads 7.4 kW for single-phase loads |
Power Scalability (Maximum system size of four Powerwall 3P units and three Expansion units.) | Up to 60 kW (4 Powerwall 3P units) |
Energy Scalability (Maximum system size of four Powerwall 3P units and three Expansion units.) | Up to 94.5 kWh |
Solar to Battery to Home/Grid Efficiency (Typical use case with energy produced by solar, stored in the battery and then released to loads or the grid.) | 90% |
Solar to Home/Grid Efficiency (Tested using EU weighted efficiency methodology.) | 98.4% |
Supported Islanding Device | Backup Gateway 2 |
AC and DC Surge Protection | Integrated Type II SPD |
Connectivity (Cellular connectivity subject to network service coverage and signal strength.) | Wi-Fi (2.4 and 5 GHz), Dual-port switched Ethernet, Cellular (LTE/4G) |
Electrical Interface | Dry contact relay 60 V 2 A, Rapid Shutdown (RSD), RS485 connector for Tesla Remote Meter |
Protections | AC Overcurrent Protection, DC Reverse Polarity Protection, Residual Current Interrupter, Isolation Monitor Interrupter (IMI), Integrated DC Isolator |
Customer Interface | Tesla App |
Warranty | 10 years |
Solar Technical Specifications
Maximum Solar STC Input | 20.4 kWp |
PV DC Startup Voltage | 60 V DC |
PV DC Input Voltage Range | 60 — 1000 V DC |
PV DC MPPT Voltage Range | 60 — 800 V DC |
MPPTs | 4 |
Maximum Current (IMP) | 16 A per MPPT 32 A with 2 MPPTs in parallel |
Maximum Short Circuit Current (ISC) | 21 A per MPPT 42 A with 2 MPPTs in parallel |
Mechanical Specifications
Dimensions | 1105 x 609 x 193 mm |
Weight | 138 kg |
Mounting Options | Floor or wall mount |
Environmental Specifications
Operating Temperature (Performance may be de-rated at operating temperatures above 40°C. 15 kW AC output available at ambient temperatures ≤ 25°C.) | –20°C to 50°C |
Operating Humidity (RH) | Up to 100%, condensing |
Storage Temperature | –20°C to 30°C, up to 95% RH, non-condensing, State of Energy (SOE): 25% initial |
Maximum Elevation | 3000 m |
Environment | Indoor and outdoor rated |
Ingress Rating | IP67 (Battery & Power Electronics) IP55 (Wiring Compartment) |
Pollution Rating | PD3 |
Operating Noise @ 1 m | < 50 dB(A) typical, < 62 dB(A) maximum |
Certifications | IEC 61000-6-1:2016, IEC 61000-6-3:2020, IEC 62477-1:2022, IEC 62109-1:2010, IEC 62109-2:2011, IEC 62933-5-2:2020, IEC 62619:2022, UL 1973, UL 9540A, AS/NZS 4777.2 |
Powerwall 3 Expansion Unit Technical Specifications
Powerwall 3 Expansion is a battery designed to add storage capacity to a Powerwall 3P system. It does not include an inverter or system controller, so it cannot connect directly to solar or operate without a Powerwall 3P. Up to three Expansion units can be stacked behind Powerwall 3P or wall-mounted next to it.
Battery Specifications
Model Number | 1807000-xx-y |
Usable Battery Energy | 13.5 kWh |
Voltage Range | 52 - 92 V DC |
Powerwall 3P Model Numbers When Installed with Expansion(s)
Model Number | Configured Power Output | Expansion Units | Total Energy |
1988000-15 kVA-13.5 | 15 kW | None | 13.5 kWh |
1988000-11.5 kVA-13.5 | 11.5 kW | None | 13.5 kWh |
1988000-10 kVA-13.5 | 10 kW | None | 13.5 kWh |
1988000-5 kVA-13.5 | 5 kW | None | 13.5 kWh |
1988000-15 kVA-27 | 15 kW | 1 | 27 kWh |
1988000-11.5 kVA-27 | 11.5 kW | 1 | 27 kWh |
1988000-10 kVA-27 | 10 kW | 1 | 27 kWh |
1988000-5 kVA-27 | 5 kW | 1 | 27 kWh |
1988000-15 kVA-40.5 | 15 kW | 2 | 40.5 kWh |
1988000-11.5 kVA-40.5 | 11.5 kW | 2 | 40.5 kWh |
1988000-10 kVA-40.5 | 10 kW | 2 | 40.5 kWh |
1988000-5 kVA-40.5 | 5 kW | 2 | 40.5 kWh |
1988000-15 kVA-54 | 15 kW | 3 | 54 kWh |
1988000-11.5 kVA-54 | 11.5 kW | 3 | 54 kWh |
1988000-10 kVA-54 | 10 kW | 3 | 54 kWh |
1988000-5 kVA-54 | 5 kW | 3 | 54 kWh |
Expansion Unit Environmental Specifications
Operating Temperature (performance may be de-rated above 40°C) | –20°C to 50°C |
Operating Humidity (RH) | Up to 100%, condensing |
Storage Temperature | –20°C to 30°C, up to 95% RH, non-condensing, State of Energy (SOE): 25% initial |
Maximum Elevation | 3000 m |
Environment | Indoor and outdoor rated |
Ingress Rating | IP67 |
Pollution Rating | PD3 |
Expansion Unit Mechanical Specifications
Dimensions | 1105 x 609 x 168 mm (with glass front cover) |
Weight | 118.5 kg (wall-mounted unit with glass front cover and bracket) 110 kg (stacked unit without glass front cover and bracket) |
Mounting Options | Floor or wall mount |
Stacking Capability | Up to 3 Expansion units behind Powerwall 3P (floor mount only) |
Compatibility | Only with Powerwall 3P or Powerwall 3 |
Connection to Powerwall 3P or Expansions | Expansion harness |
Expansion Harness Options | 0.5 m, 2 m, 4 m |
Expansion Unit Compliance
IEC 62619, IEC 62933-5-2, IEC 61000-6-1:2016, EN IEC 61000-6-3:2020
Environmental Requirements
Powerwall 3P is capable of charging and discharging within the operating temperature range specified below. At the extremes of the temperature range, Powerwall 3P may limit charge or discharge power to improve battery lifespan.
For best performance, the average ambient temperature over the system’s lifetime should fall within the optimum temperature range specified below.
Operating Temperature | -20°C to 50°C* |
*Powerwall 3P is designed to operate in all climates and in direct sunlight, from temperatures of -20°C to 50°C. Performance may be de-rated at operating temperatures above 40°C.
Care and Cleaning
Keep the immediate area around Powerwall 3P clear of foreign objects and debris to maintain optimal airflow.
! CAUTION
Do not lean on, stack anything on top of, or hang anything from Powerwall 3P or from wires or conduit leading to Powerwall 3P.
! CAUTION
To clean Powerwall 3P, use a soft, lint-free cloth. If needed, the cloth can be dampened with mild soap and water only.
! CAUTION
Do not use cleaning solvents to clean Powerwall 3P or expose Powerwall 3P to flammable or harsh chemicals or vapors.
Maintenance
Powerwall 3P does not require pre-scheduled preventative maintenance. The only maintenance required by an owner is to keep the Powerwall unit free and clear of debris, especially around the air intake and exhaust.
The owner is responsible for ensuring the Powerwall system is operational; this can be confirmed by the white LED on the front of Powerwall 3P, or in the Tesla mobile app.
Note
If the Powerwall system is not operational for an extended period of time, this may result in damage to your system and void your Powerwall warranty.
